Hyd 1/2" de d/overcentre valve flangeable omp/omr motor
Hyd 1/2" DE D/Overcentre Valve Flangeable OMP/OMR Motor

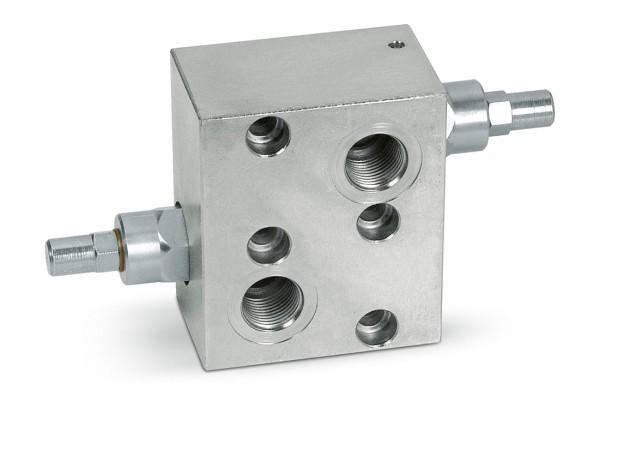

1/2" DOUBLE OVERCENTRE VALVE FLANGEABLE ON DANFOSS MOTORS OMP/OMR TYPE DE
These valves are used to control actuators movement and block in one direction(single pilot) or in both directions (double pilot) in order to enable the following functions:-
* Under control descent of a load: Loads weight doesn't carry it away, as the valve prevents any cavitations of the actuators.
* Limited maximum pressure in case of shocks created by a load, overloads or sudden manoeuvrings (load control with opened centre distributor).
Direct flange is ideal for Danfoss engine type OMP/OMR and provides a maximum safety, very low pressure drops and solid installation.
Single pilot:- connect v1 and v2 to pressure flow, C1 to the free flow side of the actuator and flange C2 to the motors side you want the flow to be blocked.
Double pilot:- Connect V1 and V2 to the pressure flow and flange C1 and C2 directly to the engine.
* Internal parts: Hardened and ground steel
Valve setting must be at least 1,3 times more than load pressure in order to enable the valve to close even when undergone to maximum load pressure.
