The Energy Detective - TED Model 5000-C - Power Monitor w/ FootPrints
See TED 5000 in action - "click here"
Smart Meters" are designed primarily for the electric utility industry so they can better manage the supply-and-demand of electricity. TED is designed specifically for the consumer, so that one can better manage the use and costs of electricity.
The Heart of TED 5000 is the Gateway, the newest component to the TED monitoring system, and the driving force behind the TED 5000. The Gateway provides the TED system with added functionality and data accessibility to make home energy management easier than ever!
With the TED 5000, the Gateway receives and stores your energy data internally. The Gateway stores 60 minutes of Second-data, 2 days of Minute-data, 90 days of Hourly-data, 24 months of Daily-data, and 10 years of Monthly-data.
Your real-time and historical data can be viewed on your computer by utilizing the Gateway's Ethernet jack, IP chip, and embedded TED Footprints software (Windows, Mac, and Linux compatible). Additionally, when you connect the Gateway to your wireless router, you can access your data from any computer or mobile device with Internet access.

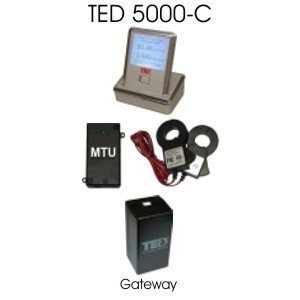

TED 5000-C Includes: Gateway + 1-MTU/CTs + Display
Works with: - Homes with Single Electrical Panels - Homes with Single Electrical Panels and Solar/wind installations (will only record the net of generation/production). The model TED 5000-C comes with all the components necessary to monitor energy usage. In addition, you can still use your computer or mobile device to track your energy data. The Footprints firmware is embedded in the Gateway and works with Google PowerMeter.
Not sure which TED model's right for you? Compare the TED 5000 series to the TED 1000 series - click here.

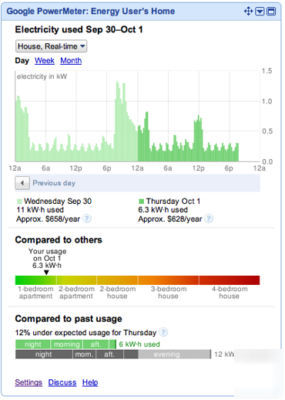

TED 5000 now works with Google PowerMeter!
* Access data: View your electricity usage from any Internet-connected device, including your mobile phone.
* Compare: Display current and historical usage in easy-to-understand charts and graphs.
* Save: Find ways to reduce your electricity use and lower your monthly bills.
* Frequently Asked Questions - click "here"
* Trouble Shooting Guide - click "here"
Installation is very simple and quick. A technically-savvy homeowner, neighbor, friend or electrician can install TED in 10-15 minutes. TED operates on the existing wires in your home, so there is no need to run any additional wires. Once the 'setup' routine has been completed, TED permanently stores all the data that has been entered, even in the event of a power outage. It only needs to be re-programmed if your electricity rates change.
TED 5000 is comprised of 2 basic components - a transmitter (MTU seen above with thumb-squeeze, clip-on CTs) and a Gateway (which is plugged into any outlet in the home). The Gateway simply plugs into any electrical outlet in the home. There are no wires to run. Data is transmitted over existing wiring in your home every 1 second, so no matter where you plug TED's Gateway in, it receives the data - in very real time!
The reason a technically-savvy person or an electrician should perform the MTU (transmitter) installation is that the cover of the electric panel is removed. Serious injury/death could occur if you are not familiar with electrical components and operation of the circuit breaker panel. It is a very simple installation for an electrician.
TED 5000 has all the features of the TED 1000 series(TED-1001 features - click here), as well as:
* Works with Google PowerMeter
* Intuitive, simple setup directly from Computer
* Compatible with Windows PC, Mac & Linux!
* Wireless hand-held display
* Rechargeable Battery - no batteries to change
* User can customize displays
* Adjustable sensitivity - user can adjust down to ONE WATT!
* View real-time energy data remotely via Internet or mobile device
* Receives signal from multiple sources
* Ties into Home Automation Systems
* Stores detailed data for export to computer
* Accommodates all rate structures - flat, tiered, time-of-use, demand, seasonal (4 seasons), weekend/holiday, or any mix of structures!
* Compare the TED 5000 series to the TED 1000 series - click here
TED Footprints is data-logging software designed to provide very detailed information about your use of electricity. TED Footprints software is embedded in the gateway firmware.
