Ge zoneline 5000 heat pump control panel

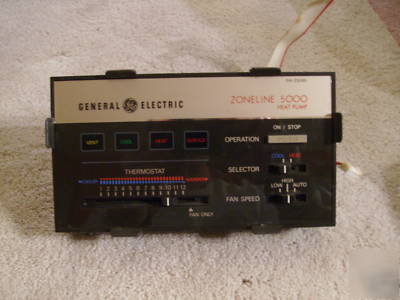

GE ZONELINE PACKAGE TERMINAL HEAT PUMP CONTROL PANEL. This panel is for Zoneline 5000 heatpump. It is located under a flip up cover on the top right of the unit. It is plastic with the VENT, COOL, HEAT, AND SERVICE controls being touch pads. The OPERATION control is a push button with ON/STOP positions. The SELECTOR is a slide switch with COOL and HEAT positions. The FAN SPEED selector is a slide switch with LOW. HIGH, and AUTO positions. The THERMOSTAT control is a slide switch with numbered 1 through 12 and FAN ONLY. 1 is the coolest and 12 is the warmest setting. The panel is 7 1/2" wide and 4 18" high. It connects to the main board with connectors that have 10 and 5 wires respectively. The numbers on the back of the board under the panel are 401JSX-009-OIR. I am a semi retired HVAC contractor who is selling off his remaining inventory
