> 96W single output 24V industrial din rail power supply

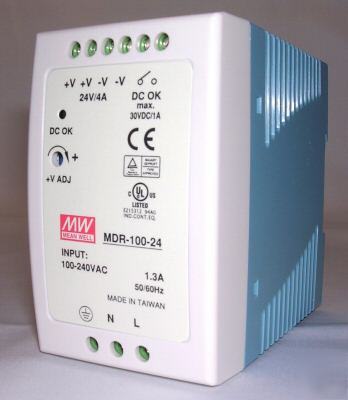

96W single output 24V industrial din rail power supply
NEW! 96W Single Output 24V Industrial DIN Rail Power Supply
This compact & light weight industrial DIN rail switch mode power supplies,
Output Voltage: 24Volt DC (Adjustable 10%)
Dimensions: 55(W) x 90(H) x 100(D)mm
.No load power consumption 1W
.NEC Class 2, limited power source (for 24V, 48V only)
We offer different kinds of Switchmode Power Supplies.
We ll be expecting your enquiry.
US$16 (By Air) 10 to14 days United States only
Recieved fairly quickly, accurately described, good communication A++
MANY THANKS FOR QUICK POSTAGE GOOD ITEMS
very good seller, lots of communication. Very happy to recommend to others!!!
3000ms,50ms/230VAC 3000ms,50ms/115VAC at full load
PF 0.95/230VAC PF 0.98/115VAC at full load
COLD START 30A/115VAC 60A/230VAC
Protection type: Shut down O/P voltage, re-power on to recover
90 10 (RTH2) detect on heats ink of power transistor
Relay contact ration(max.):30V/1A resistive
-10~+60 (Refer to output load derating curve)
UL508, TUV EN60950-1 Approved designrefer to NEC CLASS 2(for 24V,48V only)
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC 25 70%RH
346k hrs min. MIL-HDBK-217F (25 )
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
6. Deating maybe needed under low input voltages, please check the derating curve for more detail.
