PLCC44 programmer adaptor plcc-44 to DIP40 yamaichi,y

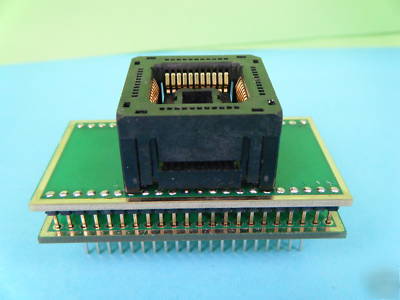

Refer the attached picture. PLCC 44 pins to DIP 40 pins, special pins:
PLCC Pin-1, Pin-23, no connection;
PLCC Pin-12, no connection or to DIP Pin-11 for some chips;
PLCC Pin-34, no connection or to DIP Pin-30 for some chips.
Uses for like 27C1024, 27C4002......ICs
The IC fixture is made by YAMAICHI, m/n IC120-0444,
