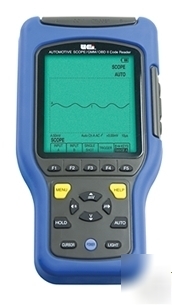

New uei ADL7103 labscope code reader


UEi Automotive Labscope ADL7103-in-one ( Scope, DMM, Code Reader)
Visit My Store ,Check out my other items! for More Professional Test Tools
This tool combines a powerful lab scope with a most useful and quick to use scan tool functions with a GMM and DSO.
Automotive On-board diagnostic systems of these days have gone a long way toward helping you locate a problem. But those systems aren't perfect and they don't cover everything (most glitches and intermittents). So the real challenge that befuddles most automotive technicians is diagnosing "no-code" trouble.
On-board diagnostic systems are engineered with fairly wide set limits for sensors, actuators, connectors and terminals. When a component exceeds its limit consistently, a trouble code is generated. But to keep warranty costs in line, tolerances aren't set to catch all transients, even though they can cause some of your worst headaches. As a result, technicians are finding more and more uses for the oscilloscope - next to the multimeter, the most common troubleshooting tool.
Use the DSO to capture a live signature of a circuit.
Use the GMM (Graphing Multimeter) to graph trends in the signal.
Use the Code Reader for quick code checks and s I/M Readiness Status to confirm repairs.
* The UEI 7103 Automotive Scope/GMM/OBD II Code Reader represents the most powerful and versatile tool available for troubleshooting automotive electronics since we can track down elusive no-code driveability problems as well as diagnose OBD II sensors and components.
* A 25 Mega-sample/Second (one channel minimum) sample rate .
* Lab scope signal patterns.
* True RMS Graphing Multimeter (GMM) measurements and graphs.
* OBD II Code Reader function.
* A unique "Glitch Snare" mode which captures, displays and optionally saves abnormal signal patterns in the Scope mode of the COMPONENT TESTS only when they occur.
* Preset tests that enable the user to check the majority of automotive sensors, actuators and systems easily and quickly.
* Powerful built-in reference information for each preset test which includes a test procedure showing how to connect to the circuit, a normal reference signal pattern, theory of operation and troubleshooting tips.
* Menu-driven interface has automatic configurations for most of non-preset tests, so you will find that the instrument is easy-to-use.
* The Secondary Ignition Single function displays the waveform along with the spark voltage, RPM, burn time and burn voltage.
* Sample rate 25 Meg per second
* Voltage and Time cursors on each channel
* 48 Pre-set waveforms that include sensor, actuator, electrical and ignition patterns
* Sweep rate 1?S to 50 seconds in the scope mode
* Glitch Snare mode captures, displays and optionally saves abnormal signal patterns in Scope or Component Test modes
* Secondary Ignition displays the waveform and includes spark voltage, RPM, burn time and burn voltage
* Parade pattern on secondary ignition Parade mode
* Built in ?Help? includes test procedure showing how to connect to the circuit, a sample of the expected waveform, theory of operation and troubleshooting tips
* Optional Diesel accessory to test injector pump timing and RPM
* 5 seconds to 24 hour sweep rate
* Frequency, Duty Cycle, Dwell
* Ignition Peak and Burn Volts, Ignition Burn Time
* Amps (with optional adapter)
* Temperature (with optional adapter)
* Generic and Manufacture Specific Definitions (GM, Ford, Chrysler, Toyota and Honda)
* I/M Readiness Monitor Status Indication
* Erase DTC?s (diagnostic trouble codes) and reset MIL capability
* USB Interface easily supports future updates (software sold seperately)
* NOTE: This unit is not CAN compatibile!
* 1 ADL7103 Automotive Scope
* 1 AC/DC Power Adapter / Battery Charger
* 2 Shielded test leads (red & yellow)
* 2 Grounded leads for shielded leads
* 3 Alligator clips (red, yellow, & black)
* 3 Back probe pins (red, yellow, & black)
* 1 Ground lead for capacitive secondary probe (black)
Complete User Manual & Data Sheet
