Meister BC10M-3 digital readout turret mill dro bore
the widest range of digital readouts
Canada, Denmark, Dubai, Estonia, France, Finland, Germany, Hungary, Ireland, Israel, Italy,
India, Indonesia, Japan, Luxembourg, Malta, Malaysia, Netherlands, Norway, New Zealand,
Pakistan, Philippines, Poland, Qatar, Romania, Russia, Switzerland, Slovenia, Spain,
Sweden, SAF, Serbia & Montenegro, Slovakia, Tunisia, Thailand, UK and USA.
Meister Bc10M-3 Digital Readout and 3 pieces of Linear Scales
Bc10M display box is make of die-cast aluminium.
Bc10M 3-axis DRO can be used on any vertical mill, horizontal mill, boring or turret machines.
Linear scales travel: 100 mm to 900 mm. travel length.
Mounting arm and plastic dust cover for display box;
Extruded alum. scales covers and,
Operation Manual (English or French).

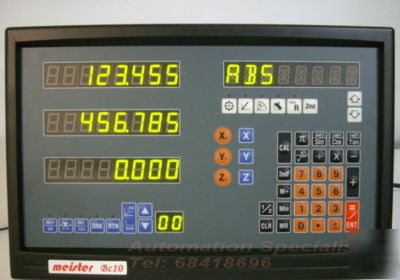

This is the new front panel of Meister Bc10M DRO.
Please note that linear scales/encoder comes in standard length of:
100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 470, 500, 520, 550, 570,
600, 620, 650, 700, 720, 750, 800, 850 and 900 mm.
Only for information: Overall Length, OAL = Travel + 128 mm.
Functions of Meister BC-10M Digital ReadOut:
* 1/2 - Value is divided by 2.
* INC/ABS: Increment/Absolute co-ordinate interchange
* Recall the last coordinate positions.
* Mechanic Zero Position Memory -re-establish workpiece zero position after power failure
* Bolt Hole Circle (Pitch Circle Diameter).
* Holes equal distance apart on a straight line.
* RTN: To pause and return to normal mode.
* SRK: Shrinkage factor for working on moulds.
* Change linear scale direction (+/-).
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Selectable 10um/5um/1um resolution setting.
* Quantizing error: +/- 1 count
* Power Source: AC 110 - 220V, 50 - 60 Hz.
* Operating Temperature: 0 ~ 40 deg C;
* Display: 8-digits green color LED display
* Dimension: 29 x 19 x 10 cm (11 x 7.0 x 4.0 inches)
This is a Grizzly mill. Photo from Arnold, USA (2009)
This is a Bridgeport..using Meister Bc10M DRO
* Grating pitch: 0.02mm (50LP/min)
* Accuracy: 0.005 mm or 0.0002" (at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec.
* Output Signal: Two square wave signals, TTL.
This is a ZAY7045 Bench Top Mill
This Super X3 drill-mill belongs to Martin/Australia.
* We are located in Singapore (part of South East Asia).
* Factory need about 2 ~ 3 days to process your order.
* I take great care in packing to ensure a safe delivery.
