Leader LT1611 LT1611 rgb programmable video generator

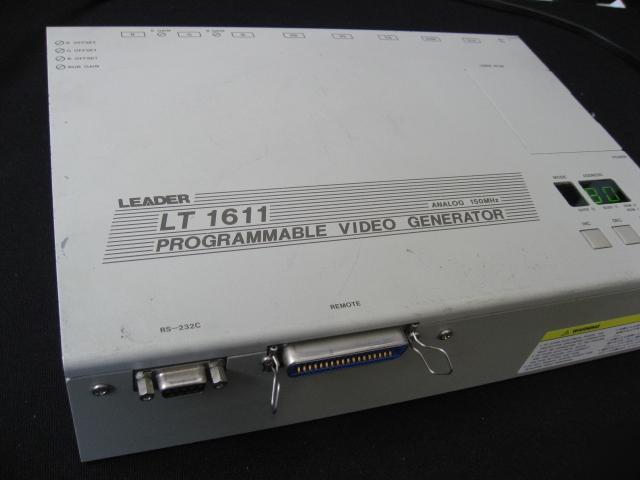

(1)Leader LT1611 LT1611 RGB Programmable Video Generator
Good condition, was in use recently at major TV flat panel factory that shut down.
I hooked this up to a VGA monitor and got various patterns to display.
This may require additional software that you have to purchase in order to fully utilize it
The following general information about this item was found on the internet and is for reference only.
http:// /web/products/rgb_video/lt1611.htm
LT 1610A, LT 1611, LT 1612A (LT 1610A shown)
This group of three RGB generators offers dedicated
analog, digital or combined analog/digital outputs to best
suit application needs. Dot clock frequencies handle a
wide range of applications ranging to SXGA (1200 x
1024). All in the group operate from user-replaceable
ROMs making them ideal for production operations
wherein parameters are not to be altered by operators.
Remote control units (LT 1610-01) extend program
selection to remote control points and widen operator
control to signal output conditions including sync format
and polarities. Full PC control gives the operator
complete control over raster architecture, signal-output
conditions and selection from stock and custom patterns.
Control extends to the graphic design of custom patterns
and the downloading of images from digital still cameras
or scanners. X-Y cursors permit the coordinates of
defective pixels in the display to be accurately established
and provision is made to test monitor power-saving
actions spelled out in VESA standards. Fast image
switching speeds production work by reducing the wait
for new images to appear. Image sequencing may be
programmed and scrolling window or character actions
aid in gauging image decay characteristics. A factory
option adds 2 MB of RAM to extend image memory to
accommodate up to 6 VGA format images.
n PC Programming and Control Operates in Windows* Environment
n ROM Setup and Control for Stand-Alone Operations
n Analog RGB, Clock to 150 MHz, Model LT 1611
n Digital RGB, Clock to 150 MHz, Model LT 1612A
n Both Analog and Digital RGB, Clock to 150 MHz/200 MHz,
n Digital Outputs 8-Bit Parallel, Models LT 1610A & LT 1612A,
Handles Most Flat-Panel Displays
n High Speed Switching Speeds Pattern Selection
n Power Saving Display Function as Specified in VESA Standards
n Graphic Design of Custom Tet Patterns
n Stock Test Patterns Include SMPTE RP-133 & Flower Image
n X-Y Display Function Locates Pixel Coordinates (to Locate
n Auto Display Functions (Pattern Switching & Scroll)
*Windows is a registered trademark of Microsoft
Corporation in the United States and/or other
K E Y S P E C I F I C A T I O N S ( L T 1 6 1 0 A - L T 1 6 1 2 A )
28 fixed patterns (still picture,SMPTE
RP-133, dot, crosshatch, gray scale,
window, character list, circle, etc.)
16 programmable patterns (15 variable
Sync, DISP: 5 V 3.3 V selectable
Setup : On/off (complies with RS-343A)
R,G, B, HS,VS, CS, DISP, CLK:BNC
DIGITAL OUTPUTS (LT 1610A, LT 1612A)
R7-R0, G7-G0, B7-B0, HS,VS, CS,HD,
R7-R0, G7-G0, B7-B0, (1/2 clock rate),
ANALOG CONTROLS (LT 1610A, LT 1611)
Non-interlace (progressive), interlace,
On/off and HS,VS,CS,HD,VD,DISP,CLK
RS-232C: D-sub 9-pin connector
Still Picture Backup Ram (2 MB)
Item Condition:Unless specifically noted above, all equipment we sell is used, but warranted to be working on arrival. Our items come from bankrupt or downsized companies and were usually in operation until they were sold. Most items will not include manuals, packaging, driver disks, etc.
