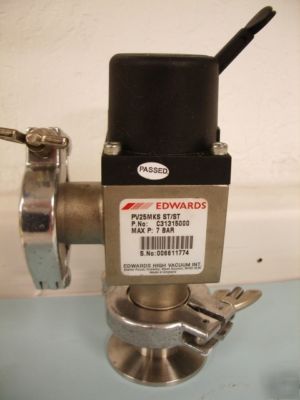

Boc edwards PV25MKS st/st right angle valve manual op
BOC Edwards PV25MKS ST/ST Stainless Steel
Manually Operated Right Angle Valve
BOC Edwards PV25MKS ST/ST Stainless Steel Manually Operated Right Angle Valve
List Price is: $295.00 NEW from BOC Edwards
The PVMK valves are quick-acting, lever-operated vacuum valves which are compact and lightweight. They are designed for long and trouble-free operation.
The valves are available in right-angled and in-line versions. The right-angled valves are designated PVMK valves, and the in-line valves are designated IPVMK valves. The valves are available with either stainless steel or aluminum bodies and a range of valve-body and flange sizes to suit your system.
The PVMKA (aluminum body) and PVMKS (stainless steel body) are quick acting, lever operated valves. The lever, connected to a self-lubricating plastic cam-piston, actuates the valve stem and valve plate through PTFE bearings. The valve plate O ring groove is vented to prevent gas bursts. The valves are designed to operate down to 10-9 mbar and up to a pressure of 2.1 bar (30 lbf in-2). Available in right-angle or in-line versions.
Body: AISI 304 grade stainless steel
Bellows: AISI 316L stainless steel
Leak Rate: < 7.5 x 10-10 torr ls-1 (10-9 mbar ls-1)
Operating Pressure Range: 30 psi - 7.5 x 10-10 torr ls-1 (2.1 bar - 10-9 mbar)
Molecular Conductance (ls-1): PV25 right-angle valve, 15
Maximum Baking Temperature: 100 C
Reliability (MTTF): 100,000 operations
Weight: PV25MK 36.8 oz. (1050 g)
