Cnc router cnc cutter cnc engraver machine

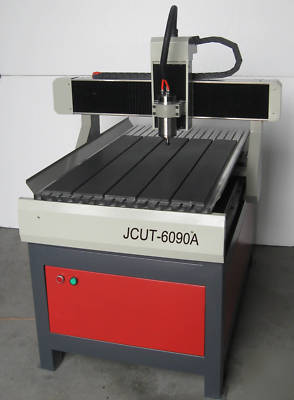

The JCUT-6090A CNC ROUTER Made in China
2)Guideway:XYZ-axis use cylindrical guideway
4) Work dimensions: 600 x 900 x 70mm
5)Body dimensions: 800 x1, 200 x 1,200mm (with bracket)
7) Max. Feeding height: 900mm or bigger
8) Cut thickness of material: 30mm
10) Working speed: 0 - 5000mm/min
13) Max. Power consumption: 1.6kW
14) Power source: AC 110/220/50-60Hz
15) Driver type: stepper motor(xyz -sxis use 57BYG motor)
17) Spindle: 1.5kW variable speed, water-cooled motor
18) Spindle speed: 0 - 24,000rpm
18) Blade diameter: 3.175mm, 4mm,6mm
19) Control system: (NCSTUDIO) or DSP (USB interface)
20) Command: G code, u00, mmg, plt
21) Running circumstance temperature: 0 - 45 C
22) Relative humidity: 30% - 75%
Packing dimensions: 900 x 1,350 x 1,300mm
Net weight: 250kg (with bracket)
Can be used for advertisement engraving, advertisement cutting, stone processing Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
vaccum table and dusty collector $ 800
