New brand fluke 199B/003S scopemeter

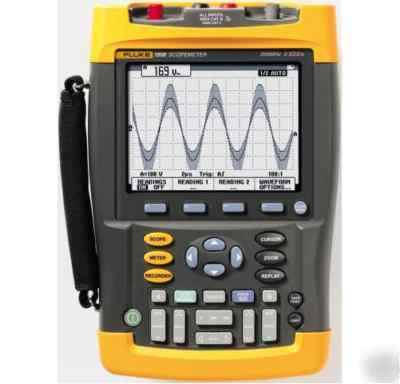

Brand New, Fluke 199B/003S Scope Meter
For the more demanding applications, the Scope Meter 190 Series high-performance oscilloscopes offer specifications usually found on top-end bench instruments. With up to 200 MHz bandwidth, 2.5 GS/s real-time sampling and a deep memory of 27,500 points per input they re ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery powered instrument.
Dual-input 200, 100 or 60 MHz bandwidth
Up to 2.5 GS/s real-time sampling per input
Connect-and-View automatic triggering and a full range of manual trigger modes
Fast display update rate for seeing dynamic behavior instantaneously
Automatic capture and replay of 100 screens
27,500 points per input record length using Scope Record mode
Trend Plot paperless chart recorder for trend analysis up to 22 days
Up to 1000 V independently floating isolated inputs
Waveform reference for visual comparisons and automatic pass/fail testing of waveforms
Vpwm function for motor drive and frequency inverter applications.
1000 V CAT II and 600 V CAT III safety certified Four hours rechargeable NiMH battery pack
27,000 points per input or more (5 ms/div 2 min/div.)
Fluke 19xB: 5 mV/div. 100 V/div.
Up to 3 ns using Pulse Width triggering; 50 ns peak detect at 5 ms/div. to 1 min/div.
Fluke 192B: 10 ns/div to 2 min/div.
25.6 x 16.9 x 6.4 cm (10.1 x 6.7 x 2.5 inch)
3 years on main instrument, 1 year on the standard accessories
Optically Isolated USB Interface Adapter
Fluke View Version V4.5 Software for Windows
