USB2.0 LPC2148 module with ENC28J60 ethernet controller

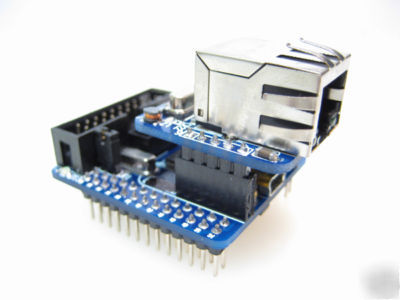

NXP LPC2148 Module with ENC28J60 Ethernet Controller Module
MDfly presents a brand new module with ENC28J60 Ethernet Controller Module for Philips NXP LPC2148 ARM Family. Build your own minimum Ethernet/Web system.
* Built-in Philips NXP LPC2148 ARM 32-bit RISC microcontroller with USB2.0 Full-speed Compliant device controller, two 10-bit ADCs, single 10-bit DAC analog output, two 32-bit timers.
* Built-in ARM JTAG interface, supports Keil Ulink or other JTAG programmer, debugger.
* Built-in 32.768Khz oscillator for RTC.
* Built-in Mini-B connector.
* All I/Os pin are brought out to header.
* Built-in voltage regulator.
* Comes with ENC28J60 Ethernet controller module.
* Built-in ENC28J60 Ethernet Controller with SPI interface.
* Built in RJ45 100BASE-T Transformer with indicator.
* 'Web server' sample code is included for testing.
User.manual.lpc2141_42_44_46_48 Datasheet Download
Schematics ENC28J60 Datasheet Ethernet Controller Module Schematics
1 x ENC28J60 Ethernet Controller Module.
1 x CD includes related datasheet, Schematics and sample codes.
NXP LPC2148 Module & ENC28J60 Module
Philips LPC2148 Microcontroller
