Omega 405-d cnc ram type edm machine

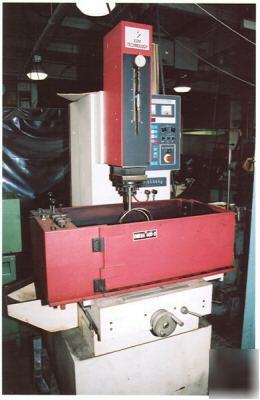

OMEGA 405-D CNC Ram type EDM Machine, S/N 20114, new 1996
Work tank internal dimensions 32.7 x17.7 x 11
Fluid level adjusting range 5.7 -11.4
Distance from top of work table to surface of electrode holder 17.3
Electrode holder dimensions 5.5 x 5.5
Distance from floor to work table top 34
Max. weight of electrode 110 lbs
Max. weight of work piece 1100 lbs
Dielectric tank capacity 500 liters
Max. machining current 30 amps
2- paper core fluid filtration mode
Sparkmaster Micro-computer current
Dimensions: 40 LR x 60 FB x 82 High
Approx. max. weight: 2,700 lbs
