Laser module w/ apc diode- driver built in 650NM 8MM
* SMALL, just 8 mm diameter X 12.5 mm long.
* Uses a 5.6 mm diameter diode. We sell those too.
* Brass Housing. If you are working on a small product, this is for you, we do sell 2 modules that are smaller.
* Operates with only about 15 mA of current, typical.
* 3 mW of laser power output, Class IIIa. Can be set for other powers including ClassII, < 1 mW (short lead time, special order)

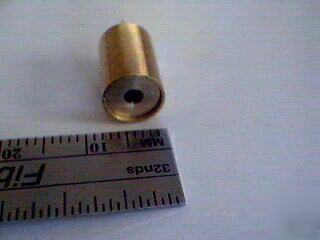

* Look at this module compared to scale shown in photo.
* Please see the data sheet for more details:http:// /html/LMAPCD-650-03.pdf
