Wilcom fs-1310 FM1310 fiber laser source meter test set

WILCOM FS-1310 FM1310 FIBER LASER SOURCE METER TEST SET
COMPLETE FIBER TEST SET with CASE
* FM 1310 - Fiber Optical Power Meter
* FS1310-Optical Laser Light Source
Offered for $1500 at Wilcom (Check HERE)

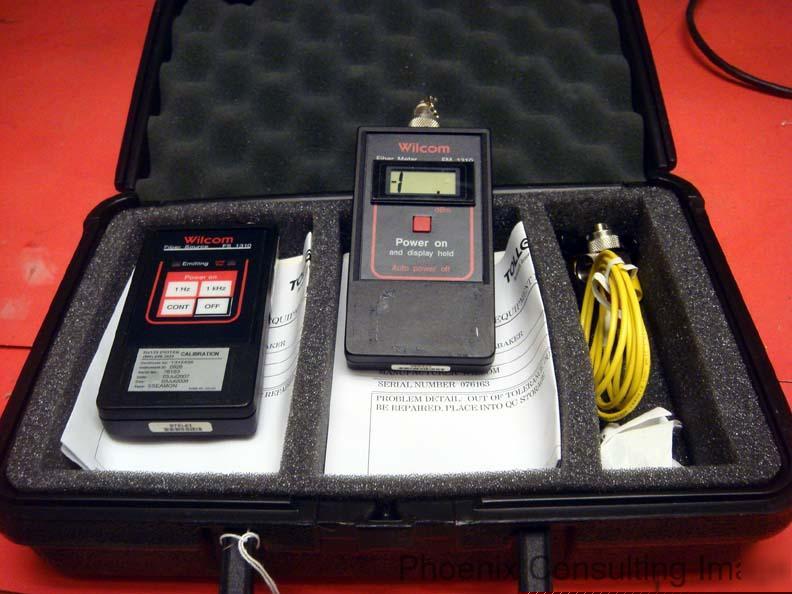

Acquired from a large manufacturer's R&D department after a downsizing. Actual item is shown. Only what is shown is included. Guaranteed functional. Last calibration date is pictured - good through last year.
THIS SET specifically INCLUDES the following:
* (1) FS 1310 - Optical Laser Light Source (1HZ & 1Khz)
* (1) FM 1310 - Optical Fiber Meter (as shown)
* (1) Wilcom Custom Molded Case
* (1) Asst of Fiber adapters, cables associated with this kit
* (1) Set of manuals for each tool, as shown
This unit passed all diagnostics and returned to a ready condition.
Datasheet for the Wilcom FM Series Fiber Meters -HERE
Growing fiber-to-the-home (FTTH) and fiber-to-the-premise (FTTP) implementation has raised demand for specialized test equipment such as Wilcom power meters, light sources, OTDRs, loss test sets, and unique products such as identifiers for optical fiber installation and maintenance.
Network service providers, carriers and optical fiber cable and systems installers know that Wilcom provides the diversity of products they need to keep up with an ever-changing industry.
Fit your application to your budget. Our Optical Loss Test Kits, and Fiber Test Kits combine the dependability and accuracy of our hand-held optical light sources and power meters with a convenient rugged carry case for the field technician. Select from kits containing multiple wavelength sources and meters which are combined for testing a range of networks such as LANs, WANs, IXC, CATV, and Telecom.
Each "Design Your Own" Kit contains an Optical Power Meter and Optical Source plus any additional equipment items and/or accessories you may require. Combine a Source and Meter with an Optical Fiber Identifier, Visual Fault Locator or Fiber Ranger Fault Locator to provide personnel with a versatile, easy-to-carry test kit.
Include in your kit adapter connectors and cables to interface with any type of optical system, and your personnel are ready to deal with any situation that may arise.
Wilcom's Fiber Test Kits provide the ability to launch a stable optical signal and measure it at the end of the cable, or to simply and quickly make optical power level measurements at any point in the network. The Model FM1310 Optical Power Meter offered in the FTS Kits does not include any means of storage or reference power indication. Power level measurements are in dBm.
The Wilcom Fiber Test Set is designed to test 1310 nm optical signals through either multimode or singlemode fiber. The kit includes an FM1310 multi-wavelength Optical Power Meter, FS1310 LED single wavelength Optical Source, adapter(s) and manuals. The 1310nm center wavelength allows the technician maximum versatility in testing either multimode LANs or short haul singlemode fiber.
Time and cost savings with one power meter for multiple wavelengths.
+5 dBm to -70 dBm Dynamic Range
A wide dynamic range that covers a variety of multimode and singlemode applications.
Singlemode and Multimode Applications
One test set for all your power and link loss
Each unit uses two commonly available AA
Alkaline batteries to provide power for greater than 100hrs of continuous use.
The FM Series Fiber Meters are hand-held, compact, lightweight, and easy to use battery powered optical power meters. Together with any of Wilcom's Fiber Sources, this team makes a perfect combination for accurately testing multimode and singlemode optical fiber systems
Models FM8515B/C, FM8520, and FM1317 offer measurements in dBm, dBr, and micro-watts (milli-watts for FM8515C). The FM8510 offers measurements in dBm only. Each unit comes with a universal connector system for connecting to the most popular connector types.
Models FM8510, FM8515B, and FM8520 measure optical power from + 5 dBm to -70 dBm with calibrated wavelengths of 850, 1310, and 1550nm making these units ideal for general singlemode and multimode fiber optic testing.
Model FM8515C (High Power ) measures optical power from +23 dBm to -50 dBm with calibrated wavelengths of 850, 1310 and 1550nm making this unit ideal for measurements on CATV systems, optical amplifiers, and other high power devices.
Model FM1317 measures power from +5 dBm to -70 dBm with calibrated wavelengths of 980, 1310, 1480, 1550 and 1625nm making this unit ideal for singlemode, multimode and WDM fiber optic testing. Additionally, 2 kHz signal detection is performed by the unit for easy fiber identification.
