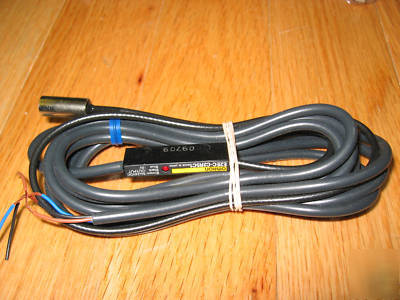

New omron E2EC-C2R5C1 8MM proximity switch 24 vdc npn
For sale are new Omron proximity sensors.
http://www.ia.omron.com/product/item/e2ec1004c/index.html
Cylinder type sensing head size
Ferrous metal (Sensitivity lowers with non-ferrous metals.)
5 to 24 VDC ripple(p-p) :10% Max.
Control output (Switching capacity)
Control output (Residual voltage)
(DC) 1 V Max. (under load current with cable length of 2m)
Standard or Different frequency
(with no icing or condensation)
+-20% Max. of sensing distance in temperature range of -25 to +70CEL
(As the basis for sensing distance of 23CEL)
+-5% Max. of sensing distance in rated voltage range of 4.75 to 30V (As the basis for sensing distance at standard power voltage)
50 M OHM Min. at 500VDC between charged parts and the case
500 VAC 50/60 Hz for 1 minute between charged parts and the case
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
500m/s2 for 10 times each in X, Y, and Z directions
Applicable standard (CCC mark)
Pre-wired models (Cable length: 2 m)
