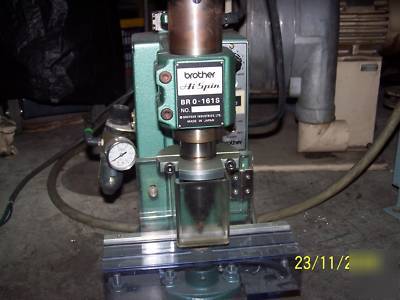

Brother bro-161S vertical automatic precision riveting
Automatic precision riveting machines
Principle Of Brother Riveting Method
This action eliminates twisting force on the rivet. As a result, no friction is created and no material "tearing" occurs. This method creates followings:
** No damage on riveting for small diameter or plated rivets.
** Riveted surface is clean, nearly polished.
** No fracturing of delicate parts such as ceramics, phonemics, plastic or carbon.
A. Brother riveting motion bears a fine finish to the parts, without impact and friction by rubbing, even if plated pins and fragile substances such as plastics are used.
B. Brother riveting mechanism is made up of pressure, stroke and timer time, fine and correct finish can be gained repeatedly, not only fixing joint but also swing-joint finish.
2. Fine stroke adjustable in 0.05 mm (0.002 inch) increments
According to adopt stopper nut with micro scale, a small adjustment of stroke can be created precisely. So, there are no cases that riveting conditions are changed due to stroke unstability.
3. Noiseless operation gives quiet working circumstances.
4. Easy setting and simple operation
It is very easy to set the jig and to set the stroke. Especially, model BRO machine has the manual change valve which can change the position of spindle to the lowest, so setting is easier. Operations of these machines are very simple (set parts and press foot switch), so skilled operators are not required.
5. Digital parts counter available
In model BRO, this counter is standard and after models can be installed in control box. (Option)
6. Multiple spindle machine (Model BRM) and specialized machine to be used Horizontal one bear high efficiency.
7. Model BRO adopts oilless cylinder, easy to maintain.
8. Optional riser block available in model BRO and BRM.
Specifications (All Metric equipment)
Distance between punch and table
Riveting capacity (Mild Steel Rivet)
2 kgs/cm2 (28.44 lbs/inch2)-5 kgs/cm2(71.10 lbs/inch2)
Average air consumption in one cycle
Working surface(Vert. Model L x W)
Occupied space (Vert. Model L x W x H)
