20" swg 1.5HP spdl clausing 2277 drill press, vari-spee
20" Swg 1.5HP Spdl Clausing 2277 DRILL PRESS, Vari-Spee

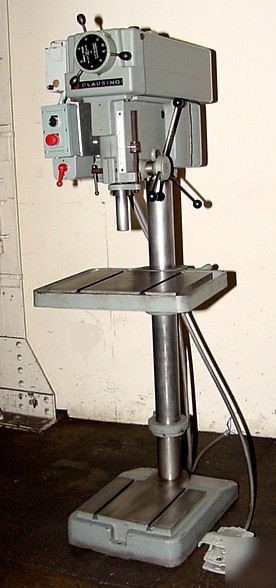

20" Swing 1.5HP Spindle Clausing 2277 DRILL PRESS, Vari-Speed,#3MT, T-Slotted Table & Base,
20" CLAUSING VARIABLE SPEED DRILL PRESS,
MODEL: 2277, S/N: 518388, NEW: 1988
CAPACITY, HAND FEED ................... 1-1/4" DIA
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
OVERALL SIZE OF TABLE ................. 19-1/2" X 22"
WORKING SURFACE OF TABLE .............. 15-1/2" X 18"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6-1/2"
MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"
MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"
BASE WORKING SURFACE .................. 13" X 15-1/2"
SPINDLE SPEED RANGES, INF VAR (2):
- LOW ................................ 150 - 1,000 R.P.M.
- HIGH ............................... 300 - 2,000 R.P.M.
APPROXIMATE WEIGHT .................... 640 LBS.
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE
* 3/4 / 1-1/2 H.P. 3/60/440 VOLT 900-1,800 R.P.M. TWO-SPEED
