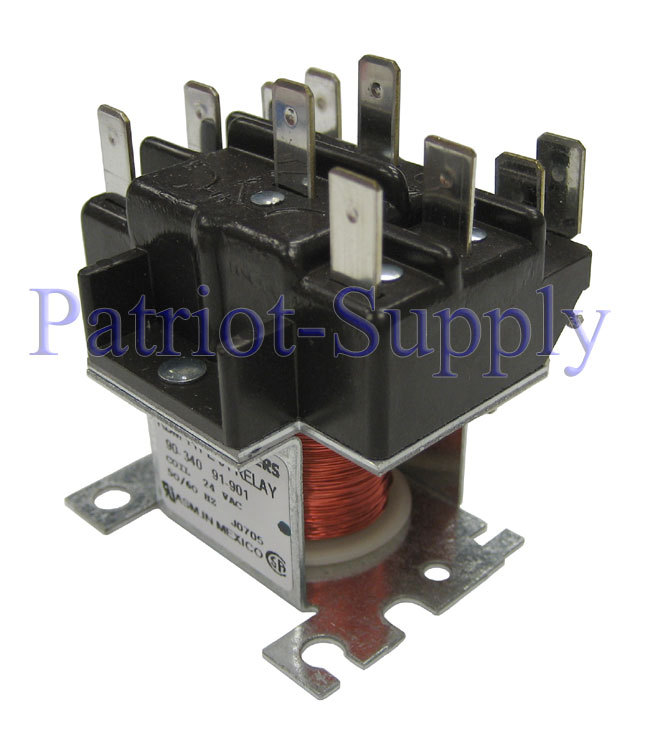

Heil quaker 1056363 2 pole-type 91,24V coil, dpdt
2 Pole-Type 91,24V Coil, DPDT, 2 Sets Of Power Rated Contacts
Suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching.
Temperature Range . . . . . . . . . . . . . . . 40 F to 130 F
Mechanical Life (no load) . . . . . . . . . . . 1,000,000 operations, 120 operations/min.
Electrical Life (rated load) . . . . . . . . . . . 100,000 operations, 6 operations/min.
Load test making inrush ratings (0.4 to 0.5 P.F.); breaking 100% continuous rating (0.65 to 0.8 P.F.)
Weight (approximate) . . . . . . . . . . . . . . 6 oz
Coils, Frequency . . . . . . . . . . . . . . . . . . 50/60 Hz
Coils, Insulation . . . . . . . . . . . . . . . . . . Class B
Coils, Termination . . . . . . . . . . . . . . . . .
Coils, Operate . . . . . . . . . . . . . . . . . . . . 85% of nominal coil voltage; 110% maximum safe operate
Coils, Duty Cycle . . . . . . . . . . . . . . . . . . Continuous
