Dynatech microplate reader mr 700

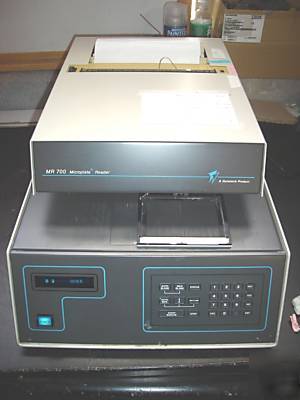

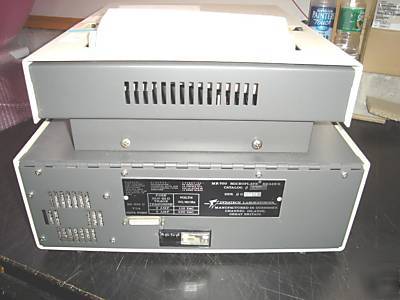

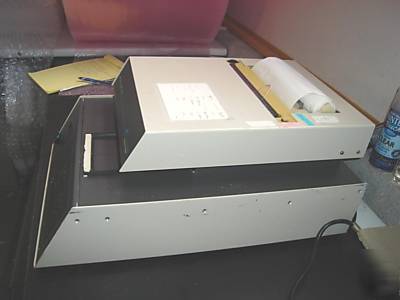

Dynatech Microplate Reader MR 700
Microplate Reader, Dynatech Laboratories, (Dynex Technologies), Model MR 700
The MR 700 Microplate Reader is a photometer designed to measure the light absorbance of samples in Microelisa (Reg) or Microtiter (Reg) plates. The instrument can be operated in either a single wavelength or dual wavelength mode.
Measurement Range: -0.100 to 2.100 Absorbance Units
Light Source: Tungsten Halogen Lamp, GE # 787
Precision: +/- 1.5% +/-1 display increment, or
+/- 0.005A, whichever quantity is greater
Wavelength Selection: Five (5) narrow band interference filters within the wavelength range 340-700nm are provided. The filters fitted are marked on the printer cover.
Bandwidth: 10 nanometers nominal
Electrical (Selectable): 100-120 Volts, 50/60 Hz
Fuse Requirements: 100-120 Volts
Display: 16 Character Alphanumeric Vacuum Fluorescent
Printer: 80/130 Column Impact Dot Matrix, 50 cps
Type Brother M1109, Parallel Interface/Centronics GLPI
Printout: Data presented in Absorbance Units with well matrix
Identification and header including all important test parameters.
Paper Type: Brother plain paper roll 210mm x 30mm (8.3insx98.4ft)
Ink Ribbon: Cassette type (endless fabric ribbon)
Ribbon width 8mm x 10 mm, color: black
Computer Interface: RS232C interface
Dimensions: 28 H x 63.5 L x 41.3 W cm (11 H x 25 L x 16 W Inches)
