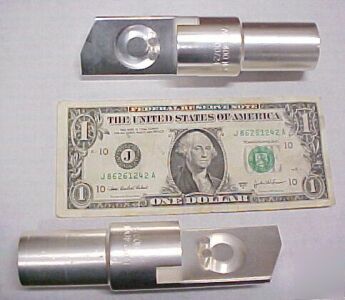

Ampower 53434-1 quick disconnect cable terminals 400MCM
Note: Two (2) Identical Connector Halves are required to make each quick connect/disconnect cable union.
These were acquired at a distributor closeout sale recently, and they were brand new in the original factory bags. They are made of solid brass (about 1-1/8 pounds each) and plated inside and out with pure silver. Now you can connect all your Christmas lights without worrying about overloaded connections. Actually, I think they were designed for connecting locomotive power cables, big generator sets, utility and industrial switchgear, transformers, and such. Should also work fine for really big welding cables.
To connect two halves, simply put the flat sides together at about a 90 degree angle, then rotate a quarter turn until they slide inside each other. There is no "male" or "female" to these. Thus, you'll never have to check and see if you have the right end, as any half can mate with any other half.
To attach them to your cable ends, just ram the wire into the connector body and beat it flat with a big rock. Or you could glob it full of epoxy and let it set overnight. But if you don't like to see massive sparks and people panicking, it would be best to use a crimper like the manufacturer suggests.
Outside diameter of barrel: 1.138"
Inside diameter of barrel: .905"
Length of tongue portion: 2.635"
Width of tongue portion: 1.365"
Thickness of tongue portion: .400"
AMPOWER Quick Disconnect Terminals for Traction Motor and Car Body Leads
- Standard interface, allows terminal to mate with existing disconnects
- Crimp style terminals marked with standard R.R. cable designations and commercial wire range
- Pin and groove or tongue and groove design for fast positive terminal engagement with complete detachability
- Silver-plated Quick Disconnect Terminals withstand higher temperatures and offer greater conductivity corrosion protection
- Crimp with standard AMP hydraulic power units, heads and die sets
The AMPOWER Quick Disconnect Terminals have been specifically designed for use in the transportation industry since they provide a highly reliable and economic means of terminating large power cables and leads. They are ideally suited for a variety of applications such as motors, generators, transformers plus numerous other electrical equipment subjected to shock and vibration as well as long continuous periods of operation.
These terminals combine a number of features to offer maximum flexibility and reliability to a consistently lower installed cost. Included are: a unique pin and groove design for fast, positive terminal engagement with complete detachability; heavy duty brass construction with silver plating for high strength and excellent resistance against vibration...without sacrificing any current-carrying capacity; ability to accept multiple conductors of various types-stranded, solid or combinations of both; and an extended bell-mouth cable entry for small and medium cable sizes that permits easy insertion of leads and also gives added support for the terminated lead.
For ease and speed of application at the lowest installed cost, all AMPOWER quick disconnect terminals are terminated in the AMP hydraulic DYNA-CRIMP tools.
Material (Body and Pins): Brass per QQ-B-626
Finish: Silver plated per QQ-S-365
