75 ton c-75 bliss o.b.i. flywheel press

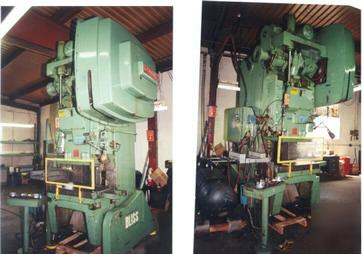

75 Ton C-75 BLISS O.B.I. Flywheel Press, S/N H65695, New 1974
Crankshaft diameter at main bearings: 41/2"
Standard strokes per minute: 90
Maximum strokes per minute: 120
Minimum strokes per minute (or intermitent stroking only): 83
Slide bolster area and thickness: 28" L x 18" FB x 11/4"
Bed blster area and thickness: 36" LR x 24" FB x 31/2"
Depth of throat, center of ram to face of column: 13"
Width of opening through back: 19"
STemhole in slide, diameter x depth: 2-5/8" x 3'
Distance, bed to gibs: 23-3/4"
Air friction clutch and brake with pedestal mounted dual electric palm button or remote electric
Dual air counterbalances & dual air receiving tanks (one is extra large capacity and sits on the
floor on the left side of the press & the other one is mounted on top of the press)Removable slide bolster plate
71/2 HP 3/60/230-460 volt drive motor and electrical controls
Machine is wired for 230 volt operation.
Approximate weight: 20,500 lbs.
