New 40 ft. andrew F4A coaxial jumper - male n and din

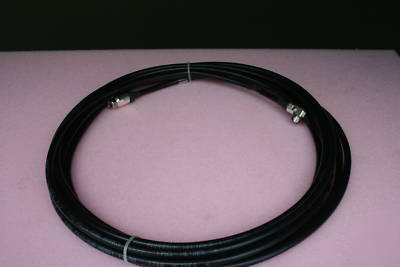

NEW 40 foot Andrew Heliax Superflexible Outdoor F4A Coaxial Cable Jumper with factory terminated PKR connector (Male, Angled, Small DIN 4.1-9.5) and terminated PNM connector (N Male Straight)
Cable Type: 40 foot FSJ4-50B (1/2" Coaxial Dielectric)

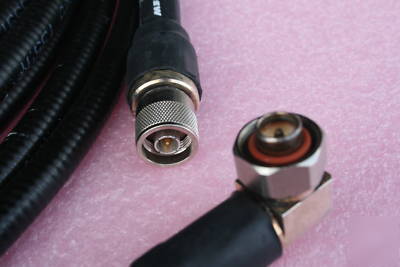

Connectors: 1 terminated PKR (plated 4.1-9.5 DIN Male Right Angled) and 1 terminated PNM (plated N Male straight)
dc Resistance Inner Conductor: 0.820 ohms/kft
dc Resistance, Outer Conductor: 1.000 ohms/kft
Insulation Resistance: 100000 MOhm
Jacket Spark Test Voltage (rms): 5000 V
Operating Frequency Band: 1 10200 MHz
