Franklin electric 2145039004 1/3 hp submersible motor
Franklin Electric 2145039004 1/3 HP Submersible Motor
Franklin Electric 1/3 HP 230V Submersible Well Pump Motor.

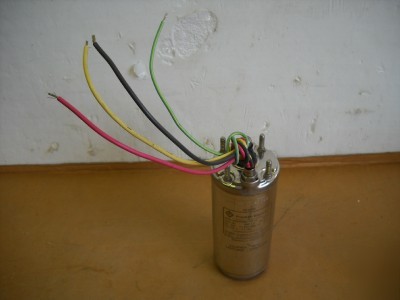

This is a motor only, no pump is included. It appears new and never hooked up, with some scratches and scuffs. I have not tested it. The model Number is 2145039004. This exact number is not referenced on the manufacturers website. There are specs. for a 1/3 HP motor that is probably the same one. Because of that I will list only the specs listed on the motor itself. HP 1/3, Hz60, Volts 230, Amp 4.0, KW.25, RPM 3450, S.F. Max. Amp. 4.6, PH 1, KVA Code N, S.F. 1.75, Continuous Duty E79819. 3 Wire Submersible Motor, Thermally Protected, Equipped With Lightning Arrestors. The motor measures Approx. 10 1/2" tall overall, approx 3 5/8" diameter. It has a splined shaft approx. 9/16" diameter.It probably only fits specified pumps. Please be sure it matches your specific pump before you by it.
