#502 gleason hydpid bevel gear testing machine #25567

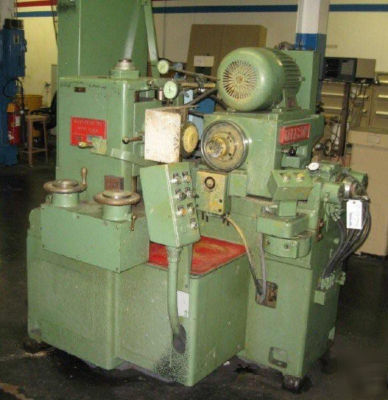

#502 GLEASON HYDPID BEVEL GEAR TESTING MACHINE
Hydraulic Power Supply w/Accumulator
Hydraulic Chucking Feature (Both Gear & Pinion
Precision Dial-Type Indicator For Pinion Head
Manual Brake For Load Simulation
Power Movement Of Drive Head (In/Out)
For 3 Phase 50 Or 60 Cycles, A.C.
Operator's Manual, Wiring & Hydraulic Diagrams
Gear Diameter (Maximum)................ 10.5"/(266mm)
Pinion Diameter (Maximum).............. 6"/(152mm)
Offset Of Gear Spdl Above Or Below
Center Of Pinion Spdl (Max)............ 3.75"/(95mm)
Pinion Spdl Taper Hole Dia @ Large End. 3-29/32"
Pinion Spdl Taper Hole Dia @ Large End. (99.2mm)
Pinion Spindle Taper (Per Foot)........ 39/64"/(15.48mm)
Depth Of Pinion Spindle Hole Taper..... 3"/(76.2mm)
Dia Of Hole Thru Pinion Spindle........ 2.5"/(63.5mm)
Gear Spdl Taper Hole Diameter @ Large End.. 2-19/64"
Gear Spdl Taper Hole Diameter @ Large End(50.8mm)
Gear Spindle Taper (Per Foot).......... "/(12.7mm)
Depth Of Gear Spindle Taper............ 3"/(76.2mm)
Main Motor............................. 5 HP,1800 RPM
Main Motor............................. (1500 RPM-50Hz)
Hydraulic Motor........................ HP,1800 RPM
Hydraulic Motor........................ (1500 RPM-50Hz)
Floor Space............................ 64"x 57"
Floor Space............................ (1620x1440mm)
Machine Overall Height................. 72"/(1820mm)
Machine Net Weight (Approx.)........... 6,950 Lbs.
Machine Net Weight (Approx.)........... (3,153 kG)
NOTES: Suitable For Testing The Running Quality
Of Bevel Gears & Pinions w/90-Degree Shaft
Angles, w/Capacity For 6" (152mm) Maximum
Diameter Pinions, & 10.5" (266.7mm) Diameter
PRICE: F.O.B. CINCINNATI OH........... $17,500.00
EXTRA: For Export Packing/Preserving & Preparation
F.O.B. Truck, Cincinnati, Ohio......... (Upon Request)
