2 x MC14013 dual type d flip flop - cmos nand gate 4013

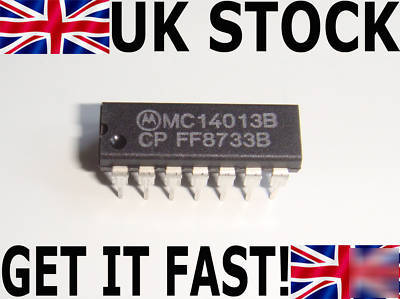

2 x MC14013 DUAL TYPE D FLIP FLOP - CMOS NAND GATE (CD4013 HEF4013)
The MC14013B dual type D flip flop is constructed with MOS P channel and N channel enhancement mode devices in a single monolithic structure. Each flip flop has independent Data, (D), Direct Set, (S), Direct Reset, (R), and Clock (C) inputs and complementary outputs (Q and Q). These devices may be used as shift register elements or as type T flip flops for counter and toggle applications.
Diode Protection on All Inputs
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Logic Edge Clocked Flip Flop Design
Logic state is retained indefinitely with clock level either high or low; information is transferred to the output only on the positive going edge of the clock pulse
Capable of Driving Two Low power TTL Loads or One Low power
Schottky TTL Load Over the Rated Temperature Range
Pin for Pin Replacement for CD4013B
DATASHEET - http://www.datasheetcatalog.org/datasheet/motorola/MC14013B.pdf
