2-spindle edlund multiple-spindle drill #24713

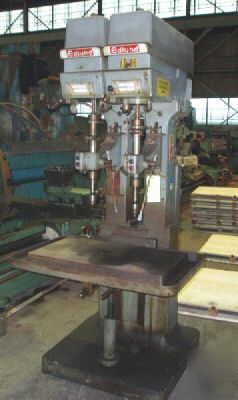

2-SPINDLE EDLUND MULTIPLE-SPINDLE DRILL
New 1968, Serial No 68333, Model 2F12
3 HP Motor Drives to All Spindles
Manual Down-Feed to All Spindles
Tapping Capabilities On RH Spindle
Number of Spindle...................... 2-SPINDLES
Drilling Capacity, Mild Steel.......... 7/8"
Drilling Capacity, Cast Iron........... 1"
Spindle-Arm Travel, Vertical........... 7"
Spindle Travel, Manual................. 7.5"
Spindle-Nose to Table, Maximum......... 25.5"
Spindle-Center Distance................ 12"
Spindle-Center to Column............... 12"
Table Adjustment, Vertical............. 15"
Table Working Surface, W x L........... 20" x 36"
Spindle Nose Diameter.................. 1.44"
RH Spindle Speeds Range, Inf........... 75 to 1800 RPM
LH Spindle Speeds Range, Inf........... 600 to 3600 RPM
Spindle Motors, Horsepower/RPM......... 3 HP/1765 RPM
PRICE: F.O.B. OUR WAREHOUSE............ $1,750.00
