1-ton gantry crane, 15' w, 12' h, trolley, lever hoist

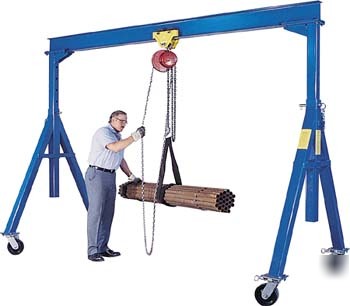

1-TON GANTRY CRANE, 15' W, 12' H, Trolley, Lever Hoist
Model Number For This Listing: AHS-2-15-12 Manual PKG
1) Adjustable Gantry Crane: 2,000 lb Capacity, 15' Beam, 7'6" to 12' adjustable height: Model: AHS-2-15-12
2) Quick Install Manual Trolley, Model QIT-2
3) Professional Lever Hoist for easy one-person height adjustment, Model: PLH-30-10
This Industrial Steel Gantry Crane is designed for transporting and positioning materials. Solid steel construction will provide years of service. Large 8" diameter locking phenolic casters with roller bearings will facilitate easy mobility from one area to another. More economical and flexible than permanent cranes. Features quick setup design. Lever Ratchet for easy one-person height adjustment (not for fixed models). Height is adjustable in 6" increments. Blue finish.
Adjustable Height Steel Gantry Cranes
This trolley is dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching the hoist. Steel construction and painted finish.
50% wider hardened ratchet gear
Grade 100 alloy chain for more strength with less weight
Chain guide system allows for horizontal operation
High impact resistant gear case and brake cover
Braking capacity is 4 times rated capacity
Manufactured to ISO-9002 quality standard
Triple chain guide for consistent up and down FREE WHEELING with one hand
Professional Lever Hoists (disc brake)
(Upgrade to PLH-30-20 for 20 ft. of standard lift)
