Mini-circuits zfdc-10-5 directional coupler 1-2000 mhz

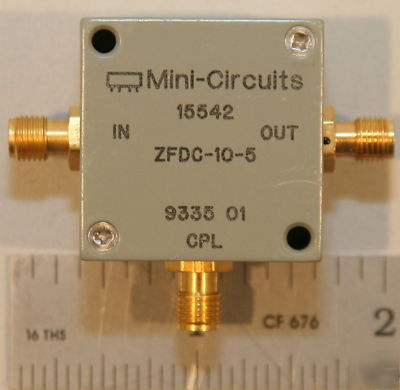

Mini-Circuits ZFDC-10-5 Directional Coupler 1-2000 MHz
Mini-Circuits ZFDC-10-5 Specifications:
* Frequency Range: 1-2000 MHz
* Low Range [Fq-low to 10 Fq-low]: 1.2 Typ., 1.9 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 1.2 Typ., 1.8 Max.
* High Range [Fq-up/2 to Fq-up]: 1.8 Typ., 2.5 Max.
* Low Range [Fq-low to 10 Fq-low]: 38 Typ., 25 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 30 Typ., 18 Max.
* High Range [Fq-up/2 to Fq-up]: 22 Typ., 18 Max.
* Low Range [Fq-low to 10 Fq-low]: 0.5
* Mid to High Range [10 Fq-low to Fq-up]: 0.5
Mini-Circuits ZFDC-10-5 Data Sheet
