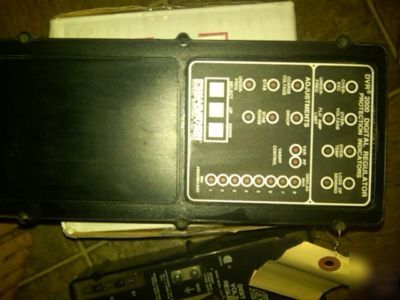

Marathon DVR2000 voltage regulator avr kohler detroit
Sensing Mode RMS (1 or 3 Phase)
Input Requirements 180-240v, 250-300Hz
Continuous Output 75 Vdc at 3.0 Adc
Max Output 1-mm 150 Vdc at 7.5 Adc
Hot Field Resistance 18-25 Ohms
Operating Temp. -40 C to +70 C
Storage Temperature -40 C to +85 C
-See Figure 1 for location of features on face of regulator
The DVR2000 Digital Regulator is equipped for either 3-phase or 1-phase sensing. The
sensing voltage is adjustable over the entire range of 95-600v without the need for
Single phase sensing is achieved by connecting terminal E2 and E3 to the same generator
Provisions are included in the regulator to allow the paralleling of two or more generators
using either reactive droop or reactive differential (cross current) compensation with the
addition of an external 5 amp 5va current transformer.
The under frequency function allows the generator to operate with a constant volts per
transition frequency is adjustable from 40 Hz to 70 Hz.
See Figure 2 for typical characteristics.
