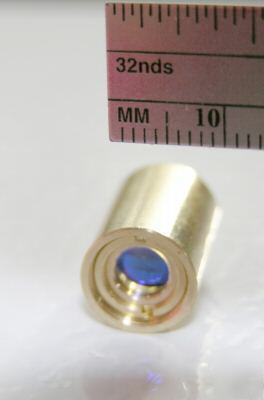

Laser module housing 10.5 mm for your diode -glass lens
This is a NEW Laser Module Housing
* 10.5 mm diameter X 14.5 mm long.
* Ready for you to install a 5.6 mm diameter diode.
* The same housing utilized in many of our APC Laser Diode Modules.
* Add your diode and driver, or add one of our APC diodes and you are done!
* Brass Housing. Includes high quality Glass aspheric collimating lens
* Typically produces a 0.9 mrad divergent beam. Lens focal length = 10mm, diameter = 6.85 mm X 3 mm thick. ~ 0.3 NA. AR Coated!
* Optimized for red wavelengths, but can be used for IR diodes too.
* For low cost blu ray diodes use our plastic lens housing unit, or for the lowest loss/ highest output- use our 405nm glass lens module housing.
* Adjustable if needed, just turn to front ring with a screwdriver, or small tool.
* Plastic Lens version also available (at lower cost), just ask/ see our other listings.
* Please see the data sheet for more details:http:// /html/H-05-G.pdf
Look above, under 'Meet the Seller' to see our other listed items
We Sell You Tomorrow's Lasers Today...
Available in Volume at a Discount. We supply Laser maufacturer's Worldwide. 2008 is our 11th Year. Put our experience and free engineering advice to work for your firm. Give us a call !
Made by an ISO 9001 manufactuter, in Taiwan. We were in the company's facility and their clean rooms in late June 2007.We are not a trading company, we only sell LASERS and related components.
Easy to use, just press fit for diode into the rear. Diode we be flush with rear of housing. Price shown now $1 off!
