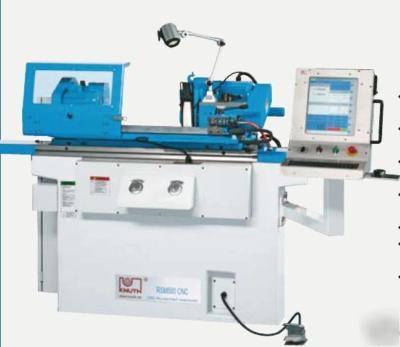

Knuth cylindrical grinder rsm 500 cnc 6"X20.5"
Multi-functional machine design plus high-performance
Fagor ensure maximum precision and efficiency
superior machining quality and high
flexibility for small batch productions
integrated machining cycles ensure
easy operation and reduced idle times
separate hand-wheels allow manual
preloaded ball screws ensure
infinitely variable work spindle speed
hydraulic tailstock is operated via
automatic central lubrication system
work piece weight (max.) 22 lbs
inside grinding diameter 0.4-1.5
table feed, infinitely variable 0-177 /min
table swivel range (max.) 7
stroke of top slide (max.) 2.5
work piece headstock swivel range r/l 10-90
grinding spindle speed 2000 rpm
inside grinding spindle speed 17000 rpm
grind. headstock swivel range (r/l) 180
motor rating main drive 5.3 Hp
grinding wheels dimensions 11.8 x 1.5 x 5
overall dimensions 47.7 x 49 x 44.8
