Yokogawa YPR512 / shinko chc-445-2 color hard copy

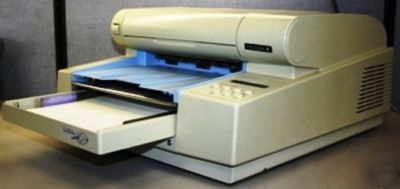

Yokogawa YPR512 / Shinko CHC-445-2 Color Hard Copy
100-120/220-240V, 4.0/1.8A, 50/60Hz, 1 Phase, 0.4Kva
Includes 1 Box (6 rolls w/ 1 opened) of Thermal Ribbon Ink PN: 060-97-0217
Model YPR512 Color Hard Copy Unit connected to the EOPS Operator Station makes a hard copy of the display. This unit can be placed on either the desk with cover or open desk.
* Print method: Thermal-transfer
* Resolution: 300 dot per inch
* Display colors: 8 or 16 colors selected from OPS Maintenance Panel: 16 colors (black, red, green, yellow, blue, magenta, cyan, white, steel blue, pink, bluish green, golden yellow, moss green, violet, cyanic blue, gray); 8 colors (black, red, green, yellow, blue, magenta, cyan, white) (Note) White is actually not printed on a hard copy.
* Print mode: 2 types: Printed with the display colors or with black-and-white reversal (white printing on black background color)
* Print time: Standard connection: 90 sec. per panel (8 colors) / 120 sec. per panel (16 colors); Long-distance connection: 110 sec. per panel (8 colors) / 180 sec. per panel (16 colors) (Note) These values are based on the condition where the operation load does not affect the communication for a hard copy. When EOPS load increases, it may take longer to print.
* Print size: 244 mm by 183 mm
* Paper supply: Automatic feeding using a paper cassette holding up to 100 sheets
* Paper feed: Friction feed
* Ink ribbon: 3 colors (yellow, magenta and cyan) / Up to 200 copies can be printed with a single ink ribbon.
* Display lock time: 1 sec.
* Printing noise: 55 dB or less (when the unit is placed on open desk and noise is measured at 1 m away from the front of the unit)
* Interface: Standard connection: 8 bit parallel (Centronicscompliance) Long-distance connection: RS-422 (start-stop synchronous system)
* Connected Cable Length: Standard connection: up to 10 m (Use a KAH cable) Long-distance connection: up to 100 m (Use a KAR cable)
* Signal Selection: In the case of long-distance connection, signals may be selected from 2 stations when a desk with selector is used.
* By manual: Use the Lock Type Selection Switch
* By remote selection: Use contact input in the selector
* Contact energizing condition: 5 V, 40 mA or more, coil resistance 125 W
* Selection status contact output : 30 V DC or less (resistance load), 1 A
* Power Supply (Specify with Suffix Codes) Voltage: 100-120VAC; Frequency: 50/60 Hz; Voltage: 220-240VAC; Frequency: 50/60 Hz
* Power Consumption: 100-120 VAC: 230VA; 220-240 AC: 264VA
* Paint color: Color hard copy unit: Light gray
* Weight: Color Hard Copy Unit: 23 kg
* Withstand voltage: 1,250 V AC per minute
