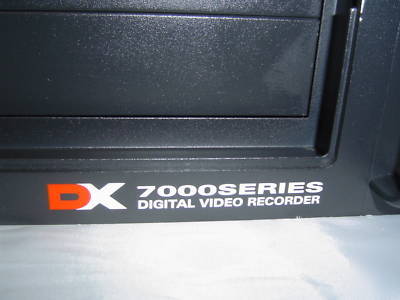

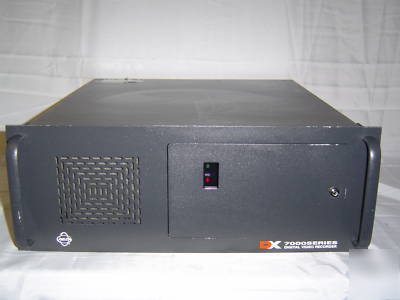

Pelco dx 7000 dvr 16CAMERA digital recorder DX7016-120

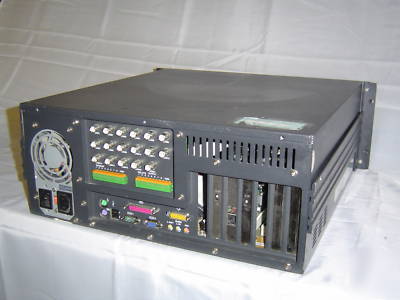

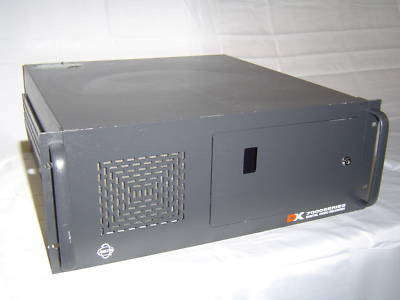

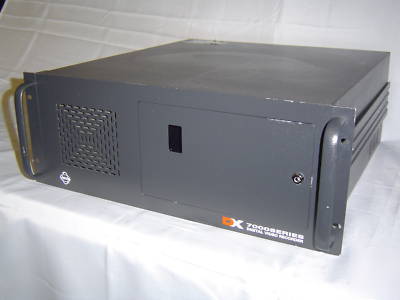

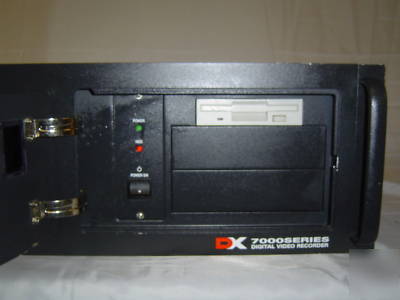

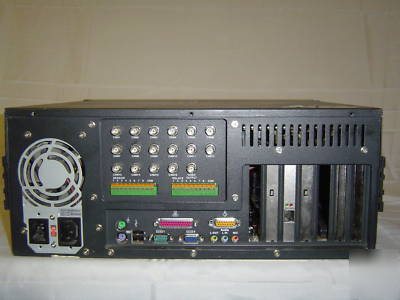

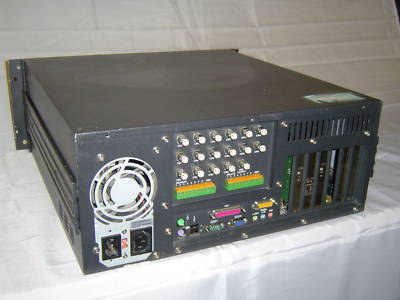

PELCO DX 7000 DIGITAL 16 CAMERA VIDEO RECORDER MODEL DX7016-120 IN VERY GOOD CONDITION, CAME OUT FROM A WORKING ENVIROMENT,THE HARD DRIVE WAS REMOVED FOR SECURITY PURPOSE,WE DO NOT SEE ANY SIGNS OF DROPPAGE AND ALL COMPONENTS APPEAR TO BE IN PLACE ALL WIRING CONNECTIONS LOOKS PERFECT, ITS SHOWING VERY LIGHT WARE MARKS,THIS THE ACTUAL PICTURES OF THE DVR WHAT YOU SEE IS EXACTLY WHAT YOU GOING TO GET! THE DVR WILL BE PROFESSIONALLY BOXED AND INSURED.
Camera Pan/Tilt/Zoom Control Via RS-422
Multiple Hard Drive Configurations for Video Storage
Multiple Camera Displays for Live Viewing or Playback While Recording
Continuous, Motion Detection, Alarm, Pre-Alarm, and Scheduled Recording Modes
Up to 8 Hard Disks, Factory Installed, for Over 90 Days Recording
Records Up to 60 Images Per Second
High-Speed Searching (Date, Time, and Alarm)
Back-up Management with External Storage Device
Playback by Date, Time, and Camera
Built-in Video Motion Detection
On-Screen Menu Programming and Operation
Remote Viewing, Access, and Control Via PSTN, ISDN, and TCP/IP (LAN/WAN/INTERNET)
Recognition of Image Alteration
Sites with up to 16 Fixed/Moveable Cameras
Remote Viewing, Access, and Control Via PSTN, and TCP/IP (LAN/WAN/INTERNET)
A major concern of digital and analog based storage technology is the necessity for dedicated on-site personnel to constantly change recorded media. Pelco's DX7000 Series Digital Video Recorder (DVR) is the perfect storage solution for unattended recording. Phenomenal compression technology and flexible, internal storage capacity alleviate the need for on-site personnel and external storage devices.
The DX7000's high capacity recording capabilities are enhanced with built-in video motion detection, alarm-based recording, and relay outputs to controls. Record and display images from one, four, nine or sixteen camera inputs to a single SVGA monitor. Analog monitor output available for viewing purposes.
View live video while recording and process commands to operate pan/tilt/zoom functions on controllable cameras such as Pelco's Spectra and Esprit Series. The DVR also features remote site access (through free software), individual remote site settings, and multiple password levels.
Select from a variety of DVR models to meet the exact demands of your installation. Models range from an eight-channel, single 30 GB HDD to a sixteen-channel unit with eight 60 GB hard drives (a total internal storage capacity of 480 GB and ninety plus days of recording time).
The DX7000 Series DVR's remarkable recording features make it easy to customize a recording schedule. Continuous, motion, and/or sensor detection can be programmed using up to 24 available group schedules.
Up to eight alarm inputs are available to trigger alarm recording when a signal is received from a connected device. This input will tell the unit to start recording, or if it is already recording, to record at a higher speed. If the recording is already in progress, a pre-alarm recording function can be set to record images before the alarm sensor detects disturbances.
When the unit is not recording, it can be set to activate when a camera detects motion. Each camera can be programmed to detect motion, including the capability to select up to 10 motion detection areas (per camera) and motion sensitivity.
Versatile high-speed search operations include time and date searching, index searching, skip searching, and alarm list searching.
