New pentax total station reflectorless 56-R323NX

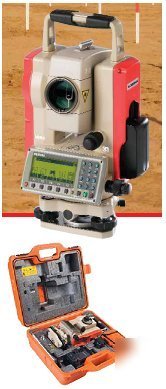

Pentax Total Station Reflectorless 56-R323NX
Pentax Total Station Reflectorless 56-R323NX ES1853
All functions are initiated from just five keys. A function that keeps the operation intuitive and logical. Easy-to-use alphanumeric keys (10 keys) allow you to enter quickly specific characters, numbers and other information.
The on-board memory of 20.000 measuring points (XYZ) allows you to handle efficiently any measurement and inspection tasks. Maximum 20,000 measuring points (XYZ) can be recorded in one job file. The user can make up to 50 job files.
* On-board memory: 20,000 points
* Measurement time to prism/reflector sheet: 0.4 sec in Tracking Mode and 1.2 sec in Quick Mode setting
* EDM accuracy: (2+2ppm) on all models, except R-326EX (3+2ppm)
* Date clock on all non prism models
* Reflectorless measuring up to 200m
* Single prism measuring up to 4.500m (14,764 ft), with (2+2ppm) accuracy
* Four classes of angular accuracy: 2" (0.6mgon); 3" (1mgon), 5" (1.5mgon) and 6" (1.9mgon)
* Prismless Auto Focus EDM: Reflective tapes may also be used as targets
* Auto Focus [World First Triple Focusing System]
* World First Dual Prismless Mode EDM [90 / 200m]
* Telescope with 30x magnification
* Automatic Atmospheric Correction
* Indicator LED for Laser beam
* Ni-MH Battery: With the compact standard camcorder Ni-MH battery (rechargeable DC6V), the R-300X user can go anywhere to measure for up to a whole working day (6 - 12 hours) without having to depend on a power source.
* Large graphic display: Large 20 character x 8 line graphic display for simple operation.
* Electronic vial easy-to-operate through function keys.
* Incorporated date clock for more efficient job management.
* Alphanumeric Keyboard (10 easy-to-operate keys)
* Compact and Lightweight (12.1lbs / 5.5kg - 12 .6 lbs / 5.7kg battery incl.)
* Dual Axis Compensator guarantees perfect horizontal and vertical alignment and performs fine leveling. Triple Axis Compensator for R-322 and R-323 models (NX and EX).
* Highest standard in Waterprotection IP56 (following the IEC 60529 standard).
* Laser plummet for easy and quick set-up Makes it easy to center over a set up point and step-by-step adjustable intensity of the plummet laser point to critical lighting conditions.
Innovative Dual Mode EDM Measuring system
No more obstacles on the construction site. Simply select the desired laser mode by striking one of the five function keys and you can measure objects up to 200 meters away without a prism.
The Total Stations incorporate a clock allowing time and date data to be recorded in the jobfile, making it possible for the user to effectively manage job history.
On-board software PowerTopoLite
It comes equipped with full-featured PowerTopoLite software that helps you handle your most difficult survey jobs. This powerful software package features an easy-to-use operator interface that guides you through all measuring jobs. PowerTopoLite's architecture provides open access to a number of powerfull integrated functions to solve any advanced surveying application.
Complies with the most stringent international industry standards. It is designed and engineered to ensure accuracy and reliability under the harshest work conditions, at the same time protecting your investment. (The degree of protection against dust and water complies with the International Protection standard IP56 defined following the standard IEC 60529).
Reliable Data Exchange with DL-01
Information is exchanged via a standard RS232 cable. DL-01 software supports all upload and download between PENTAX surveying instruments and PC s. DL-01 allows direct exchange of data from any software. It operates under Windows 95, 98, 2000 & NT and Windows XP. Data can be converted into the following formats: Pythagoras files, DXF, JS-Info, TDS, SDR,TAB separated ASCII, DC-1Z, 3 User Definable Formats and various other accepted formats.
* One-Year Manufacturers Warranty, Battery pack, Battery charger, Plumb Bob, A set of tools, Rain cover, Carrying Case, and Users Manual.
