Miller dynasty 200 dx tig welder 907099-01-1

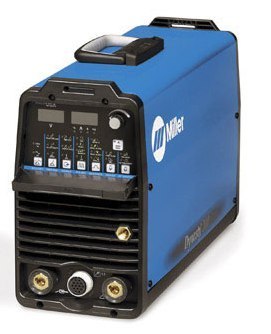

Miller Dynasty 200 DX TIG Welder 907099-01-1
Miller Dynasty 200 DX TIG Welder #907099011
All Models Includes: 8 ft Power Cord, Torch Adapter (195378) and 2 Dinse Connectors.
DX - When the job demands greater control the DX provides pulse on/off, pulse frequency, peak % time, background amperage, initial amperage, initial slope time, final slope time and final amperage control.
Advanced Squarewave arc for improved weldability on aluminum and magnesium using low power. Continuous high-frequency is NOT needed because of the advanced Squarewave arc.
Fan-On-Demand cooling system only operates when needed.
Auto-Line provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
Low OCV Stick is a simple design that reduces open-circuit voltage to 5-10 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Lift-Arc start provides TIG arc starting without the use of high frequency.
Wind Tunnel Technology is an Internal air flow that protects electrical components and PC boards from dirt, dust, and debris, greatly improving reliability.
LVC Line Voltage Compensation
Keeps output of the power source constant regardless of fluctuation in input power 10%.
Squarewave technology is the AC output of a power source that has the ability to rapidly switch between the positive and negative half cycles of alternating current.
Internal components are protected from damage by thermal overload protection hich automatically shuts down the unit if duty cycle is exceeded or air flow and cooling are restricted.
* 200 A at 18 V, 20% Duty Cycle
* 150 A at 16 V, 60% Duty Cycle
* 140 A at 15.6 V, 40% Duty Cycle
* 100 A at 14 V, 100% Duty Cycle
* 200 A at 28 V, 20% Duty Cycle
* 130 A at 25.2 V, 60% Duty Cycle
* 100 A at 24 V, 60% Duty Cycle
* 90 A at 23.6 V, 100% Duty Cycle
* 1-200 Amps (1-150 on 120 VAC)
More Info from Miller is available here.
