Icp das analog daq system (6)I7000 modules 48CH unused
ICP DAS ANALOG DAQ SYSTEM (6)I7000 Modules 48Ch UNUSED
48 Channel Analog to Digital Data Acquisition System per Photos
Currently setup with 16 channels to measure +/- 20 Volts
(The terminal block contains 2:1 Resistive Dividers)
The remaining 32 Channels are not yet wired
FREE ICP Software available to immediately use
Comprises these six ICP DAS I7000 series 8 Channel ADC Modules:

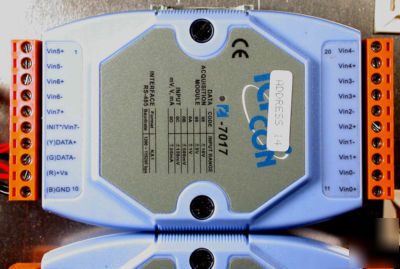

(2) 7017 - 8 Ch Differential - V, mV and mA

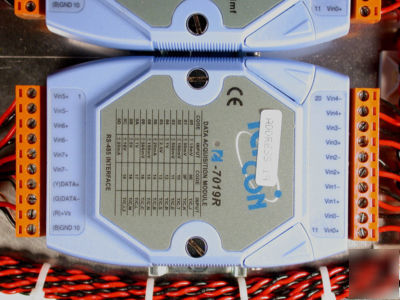

(4) 7019R - 8 Ch Differential - V, mV, mA and Thermocouple

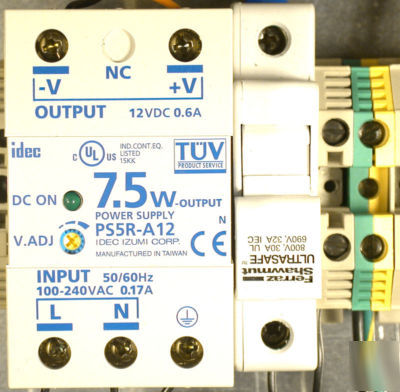

Includes a 12 VDC Power Supply (100-240 VAC) and Terminal Blocks

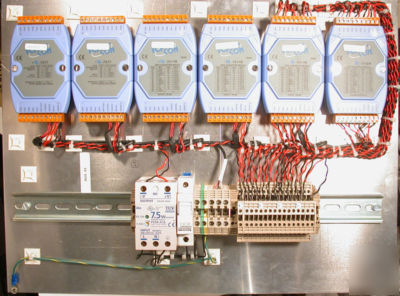

all mounted on 2 DIN Rails on an Aluminum plate (19" x 15")
This system was assembled but never installed or used

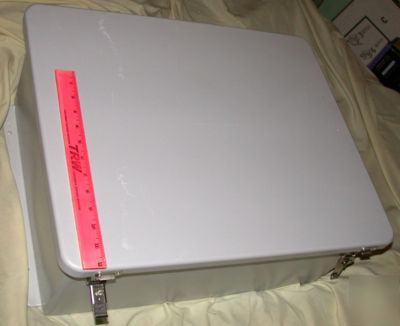

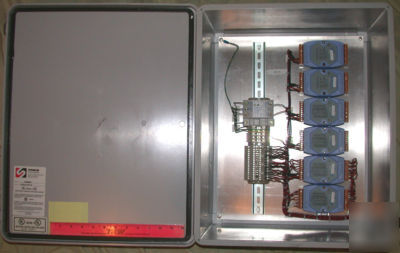

One System is installed in a cabinet per photos
Note: No holes punched in Cabinet
The Cabinet is optionally available for an additional $60.00

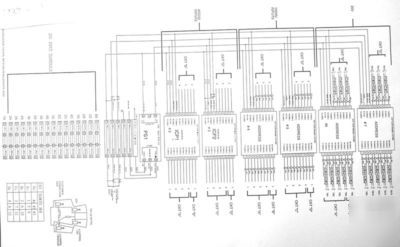

A wiring diagram is included as well as a Manual for the Modules
A 2nd identical System may become available
