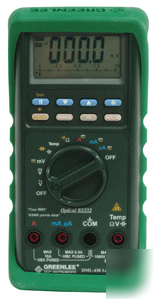

Greenlee dml-54 digital logging meters 5400 DML54
Name: Digital Logging Meter (5,400 data points)
Spec: Voltage Measurement 50.00, 500.0mV; 5.000, 50.00, 500.0, 1000V Amperage Measurement 500.0, 5000 A; 50.00, 500.0mA; 5.000, 10.00A Resistance 50.00, 500.0O; 5.000, 50.00, 500.0kO; 5.000, 50.00MO Capacitance 50.00, 500.0nF; 5.000, 50.00, 500.0, 9999 F Frequency 10Hz-125kHz Temperature K type, -58 F to 1832 F (-50 C to 1000 C) Measurement Category Cat IV, 600V per IEC 61010-1; Cat III, 1000V per UL 3111-1
Description: True RMS, autoranging, 3-5/6-digit, 5000-count display for greater accuracy.
* Selectable sampling intervals between 0.05 seconds -
* 480 seconds, 8-month max (DML-430) logging period.
* 0.05 second memory rate to capture fast transients.
* Frequency, temperature, and capacitance measurements and diode and continuity tests standard.
* RS-232 capable, may be connected to a PC for extended measurement capability with optional interface DMSC-8L.
