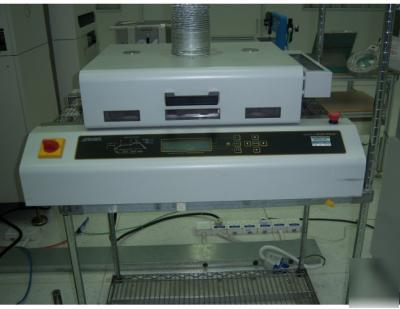

Aps gf-12AC reflow oven
* Heating zones: 3 top, 3 bottom
* Electrical power:220 VAC, 50/60 Hz, single phase (...), 5.5 Kw
* Max board width: 12 inches (305mm)
* Max board height: 1.375 inches (35mm)
* Max temperature: 482 deg'F (250 deg'C)
* Venting: 4 inch flange, requires 300 CFM
* Heating technology: Forced air convection
* Heat tunnel length: 24 inch (610mm)
APS. Gold-Flow Conveyor and Batch Reflow Ovens. Retrieved 6-26-2009.
