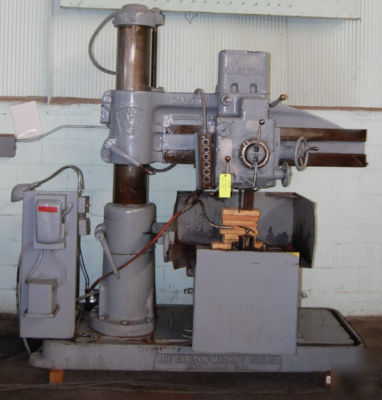

4'9" carlton radial drill #25896
Horizontal Head Travel on Arm.......... 39"
Vertical Arm Travel on Column.......... 27"
Spindle-Radius, Minimum................ 16"
Spindle-Nose to Base, Minimum.......... 16"
Column-Face to Spindle, Minimum........ 9"
Column-Face to Spindle, Maximum........ 48"
Drills to Center of Circle............. 8'0"
Base Working Surface, W x L............ 30" x 53"
Base Height............................ 6"
Spindle Nose Diameter.................. 2.5"
(9) Spindle Speeds, Range.............. 60 to 3000 RPM
(4) Spindle Feeds, Range............... .006 to .020 IPR
Weight, Approximately.................. 5575 LBS
