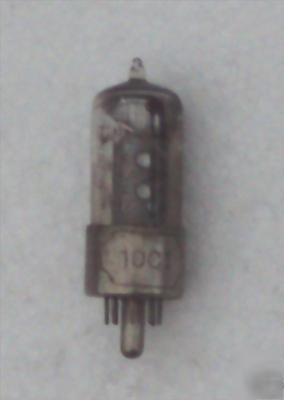

1 mazda 10C1 valve - tested
This Mazda 10C1 valve has been tested on an AVO valve tester and has good characteristics.
Specification for 10C1 - triode heptode valve:-
triode Ia = 6.0 mA & Gm = 3.0 mA/V for Va = 100 V, & Vg = - 3.3 V heptode Ia = 8.0 mA & Gm = 2.5 mA/V for Va = 200 V, Vs = 100 V & Vg = - 2.5 V
trioe;- Ia = 5.7 mA & Gm = 1.7 mA/V heptode;- Ia = 4.9 mA & Gm = 1.7 mA/V
