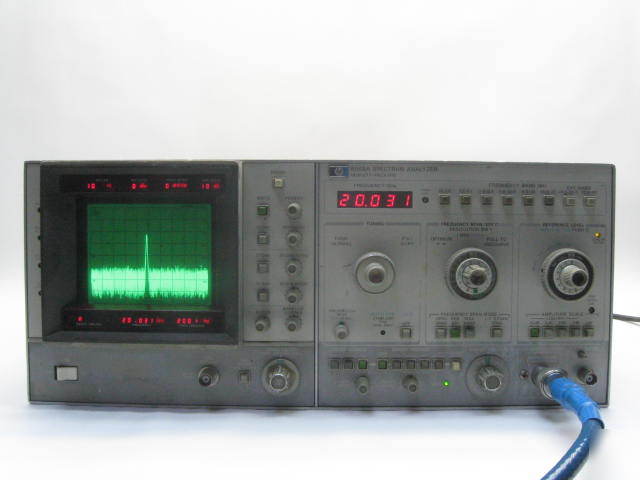

Hp 8565A spectrum analyzer 10MHZ to 22GHZ opt/ 100
The 8565A Portable Spectrum Analyzer covers 10MHz to 22GHz frequency range with internal mixing, up to 40GHz with external mixing. Absolute amplitude calibration. Wide choice of resolution bandwidths (3 dB) from 1kHz to 3MHz, in 1-3 sequence. Bandwidth and span width are independently variable.
* Option 100 = 100Hz and 300Hz Resolution Bandwidth
Eval-05a) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND .01-1.8] -
PASS: Frq_Hz: 1.00G - signal OK at center of CRT, and at left or right.
Eval-05b) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 1.7-4.1] -
FAIL: Frq_Hz: 2.00G - signal OK at center of CRT, but >-30dB lower at left or right.
Eval-05c) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 3.8-8.5] -
FAIL: Frq_Hz: 4.00G - signal OK at center of CRT, but >-30dB lower at left or right.
Eval-05d) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 5.8-12.9] -
FAIL: Frq_Hz: 10.00G - signal OK at center of CRT, but >-30dB lower at left or right.
Eval-05e) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 8.5-18] -
FAIL: Frq_Hz:15.00G - signal OK at center of CRT, but >-30dB lower at left or right.
Eval-05f) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 10.5-22] -
FAIL: Frq_Hz:21.00G - signal OK at center of CRT, but >-30dB lower at left or right.
Eval-10a) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND .01-1.8]
Eval-10b) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 1.7-4.1]
PASS: Frq_Hz: 2.00G - signal OK at center of CRT, and at left or right.
Eval-10c) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 3.8-8.5]
PASS: Frq_Hz: 4.00G - signal OK at center of CRT, and at left or right.
Eval-10d) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 5.8-12.9]
PASS: Frq_Hz: 10.00G - signal OK at center of CRT, and at left or right.
Eval-10e) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 8.5-18]
PASS: Frq_Hz:15.00G - signal OK at center of CRT, and at left or right.
Eval-10f) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 10.5-22]
PASS: Frq_Hz:21.00G - signal OK at center of CRT, and at left or right.
Eval-11a) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND .01-1.8]
Frq_Hz: 400.K 500.K 600.K 700.K 800.K 900.K
Lev_dBm: -20.0 -18.0 -15.0 -12.0 -12.0 -10.0
Frq_Hz: 001.M 002.M 003.M 004.M 005.M 006.M 007.M 008.M 009.M
Lev_dBm: -10.0 -6.0 -8.0 +2.0 +10.0 +12.0 +12.0 +12.0 +12.0
Frq_Hz: 010.M 100.M 150.M 200.M 250.M 300.M 350.M 400.M 450.M
Lev_dBm: +13.0 +13.0 +14.0 +14.0 +14.0 +14.0 +14.0 +13.0 +13.0
Frq_Hz: 500.M 550.M 600.M 650.M 700.M 750.M 800.M 850.M 900.M 950.M
Lev_dBm: +13.0 +13.0 +13.0 +13.0 +13.0 +13.0 +13.0 +13.0 +13.0 +13.0
Eval-11b) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 1.7-4.1]
Frq_Hz: 1.70G 1.80G 1.90G 2.00G 2.50G 3.00G 3.50G 4.00G 4.10G
Lev_dBm: +8.0 +9.0 +9.0 +8.0 +6.0 +3.0 -1.0 -4.0 -6.0
Eval-11c) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 3.8-8.5]
Frq_Hz: 3.80G 3.90G 4.00G 4.50G 5.00G 5.50G 6.00G 6.50G 7.00G 7.50G
Lev_dBm: -3.0 -4.0 -4.0 -6.0 -7.0 -10.0 -13.0 -15.0 -18.0 -24.0
Eval-11d) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 5.8-12.9]
Frq_Hz: 5.80G 6.00G 6.50G 7.00G 7.50G 8.00G 8.50G 9.00G 9.50G
Lev_dBm: +2.0 +1.0 -1.0 -4.0 -8.0 -9.0 -12.0 -16.0 -21.0
Frq_Hz: 10.0G 10.5G 11.0G 11.5G 12.0G 12.5G 12.9G
Lev_dBm: -23.0 -26.0 -26.0 -30.0 -31.0 -32.0 -34.0
Eval-11e) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 8.5-18]
Frq_Hz: 8.50G 9.00G 9.50G 10.0G 10.5G
Lev_dBm: -11.0 -8.0 -12.0 -12.0 -15.0
Frq_Hz: 11.0G 11.5G 12.0G 12.5G 13.0G 13.5G 14.0G 14.5G 15.0G 15.5G
Lev_dBm: -16.0 -20.0 -22.0 -20.0 -22.0 -26.0 -30.0 -32.0 -35.0 -35.0
Frq_Hz: 16.0G 16.5G 17.0G 17.5G 18.0G
Lev_dBm: -35.0 -35.0 -36.0 -40.0 -41.0
Eval-11f) - Output Frequency (Setup 0dBm) vs. Output Level (measured) [BAND 10.5-22]
Frq_Hz: 12.0G 12.5G 13.0G 13.5G 14.0G 14.5G 15.0G 15.5G 16.0G 16.5G
Lev_dBm: -7.0 -9.0 -11.0 -14.0 -16.0 -20.0 -18.0 -24.0 -24.0 -25.0
Frq_Hz: 17.0G 17.5G 18.0G 18.5G 19.0G 19.5G 20.0G 20.5G 21.0G 21.5G 22.0G
Lev_dBm: -28.0 -28.0 -30.0 -33.0 -34.0 -34.0 -31.0 -36.0 -34.0 -36.0 -34.0
Eval-11g) PASS: CAL OUT: 100.000361 MHz, -10.0dBm.
Eval-11h) PASS: RESOLUTION BW - 3MHz (mechanical knob indication)
Eval-11h) FAIL: RESOLUTION BW - 3 Hz (LED display indication - "M" missing)
Eval-11i) PASS: RESOLUTION BW - 300KHz (mechanical knob indication)
Eval-11i) FAIL: RESOLUTION BW - 300 Hz (LED display indication - "K" missing)
Eval-11j) PASS: REFERENCE LEVEL FINE (dBm) - 0dBm (mechanical knob indication)
Eval-11j) PASS: REFERENCE LEVEL FINE (dBm) - 0dBm (LED display indication)
Eval-11k) PASS: REFERENCE LEVEL FINE (dBm) - -1dBm (mechanical knob indication)
Eval-11k) PASS: REFERENCE LEVEL FINE (dBm) - -1dBm (LED display indication)
Eval-11L) PASS: REFERENCE LEVEL FINE (dBm) - -7dBm (mechanical knob indication)
Eval-11L) PASS: REFERENCE LEVEL FINE (dBm) - -7dBm (LED display indication)
Eval-11m) PASS: REFERENCE LEVEL FINE (dBm) - -8dBm (mechanical knob indication)
Eval-11m) FAIL: REFERENCE LEVEL FINE (dBm) - -7dBm (LED display indication)
Eval-11n) PASS: REFERENCE LEVEL FINE (dBm) - -9dBm (mechanical knob indication)
Eval-11n) FAIL: REFERENCE LEVEL FINE (dBm) - -6dBm (LED display indication)
Eval-11o) PASS: REFERENCE LEVEL FINE (dBm) - -10dBm (mechanical knob indication)
Eval-11o) FAIL: REFERENCE LEVEL FINE (dBm) - -5dBm (LED display indication)
Eval-11p) PASS: REFERENCE LEVEL FINE (dBm) - -11dBm (mechanical knob indication)
Eval-11p) FAIL: REFERENCE LEVEL FINE (dBm) - -4dBm (LED display indication)
Eval-11q) PASS: REFERENCE LEVEL FINE (dBm) - -12dBm (mechanical knob indication)
Eval-11q) FAIL: REFERENCE LEVEL FINE (dBm) - -3dBm (LED display indication)
Eval-11r) PASS: FREQUENCY SPAN/DIV - (mechanical knob indication)
Eval-11r) PASS: FREQUENCY SPAN/DIV - (LED display indication)
Eval-11s) PASS: REFERENCE LEVEL (dBm) - (mechanical knob indication)
Eval-11s) PASS: REFERENCE LEVEL (dBm) - (LED display indication)
Eval-11t) PASS: INPUT ATTEN (dB) - (mechanical knob indication)
Eval-11t) PASS: INPUT ATTEN (dB) - (LED display indication)
Eval-11u) PASS: LOG SCALE (dB) - (mechanical button indication)
Eval-11u) PASS: LOG SCALE (dB) - (LED display indication)
Eval-11v) PASS: SWEEP TIME/DIV - (mechanical knob indication)
Eval-11v) PASS: SWEEP TIME/DIV - (LED display indication)
Eval-11w) PASS: FREQUENCY GHz - (mechanical knob/LED indication)
Eval-11w) PASS: FREQUENCY GHz - (LED display indication)
Eval-11x) PASS: All General Tests.
