Burndy Y46C insulated crimper hypress hydraulic tool

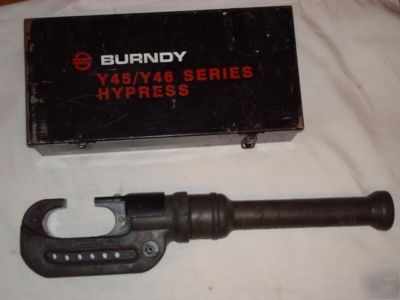

This is a Burndy Products Type Y46C Hypress remote hydraulic crimper insulated
Rubber covered tool is lightweight, compact and versatile with installation dies for both circumferential and nest-indentor types.
Operating pressure: 10,000 psi
Overall length: 21 3/4" (including boot)
Weight (without case): 17 1/2 lbs
Connector type Conductor Range
Copper Terminals-grounding to 500 kcmil
1500 kcmil Terminals- Uninsulated #8 to
Code Cable 1500 kcmil, YAM YA-2N, YA-L
Navy Cables YA-LB,YA-TC,YA-2LN,YAB-4N
Extra Flexible YAV-L Box, YAV-L, YAV-RS
1/2"- 1" Ground Rods Box, YAV-RS, YAEV-RH
Compact "C" shaped head allows easy placement and removal from continuous conductor lengths.
Works on all commonally used copper and aluminum products.

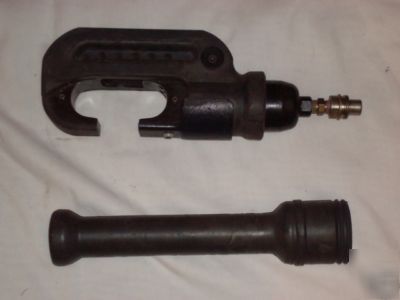

The Y46C has a permanently molded head of 3/6" rubber and includes a separte molded rubber boot to cover the lower HYPRESS body and hydraulic coupler for impact protection.
