Moeller motor protector/contactor (PKZ2 s-PKZ2)Â

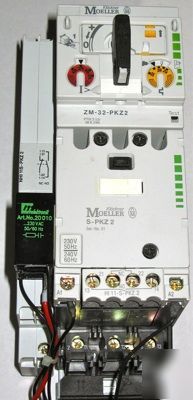

Moeller Motor Protector/Contactor (PKZ2 S-PKZ2)
Motor Protector PKZ2/ZM-32Amp Range: 24-32
Contactor S-PKZ2Rated 15HP @ 230V and 30HP @ 460V
Auxiliary Contact NHI11S-PKZ21 N.O. & 1 N.C. Contact
The PKZ 2/ZM/S-SP is a self-protected starter, the first motor controller to be UL listed and CSA certified under Type E, the category for self-protected control devices. In
other words, it is a combination motor controller featuring main disconnect, overcurrent, overload and motor switching functions in one compact unit.
In addition, the PKZ 2/ZM/S-SP incorporates the latest technological advances in current limitation to provide a high short-circuit interrupting rating and continuity of
The PKZ2/ZM/S-SP is a stand-alone device which does not require any backup protection up to its maximum interrupting rating! It is available in both, full voltage non-
reversing and full voltage reversing versions.
UL listed, CSA certified self-protected combination motor controller
UL 508 / CSA 22.2 No. 14, Category E.
Fuseless, high fault interrupting current-limiting design, with separate
main contacts for disconnect and contactor.
The modular construction integrates both thermal and magnetic trips.
Controls and protects motors up to 30 HP at 460V, 25 HP at 575V
One basic device accommodates up to 11 different plug-in modules,
simplifying engineering and reducing stocking costs.
Suitable for PLC controlled, fully automated operation.
Differentiated overload and short-circuit trip indication.
A wide range of accessories.
