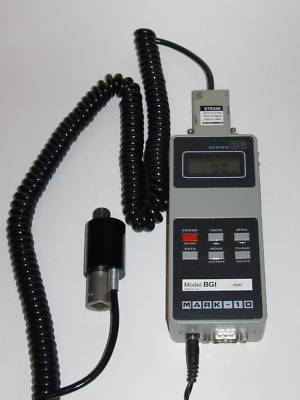

Mark-10 model bgi force /torque gauge and STE200SENSOR

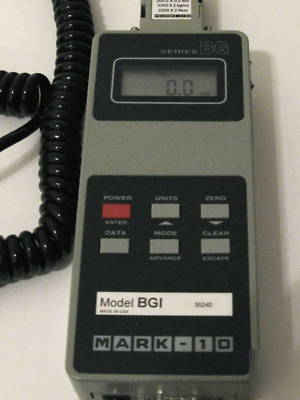

MARK-10 MODEL BGI FORCE /TORQUE GAUGE

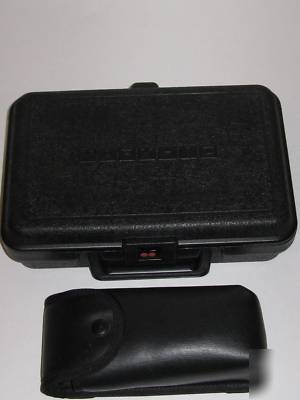

Includes Mark-10 BGI Gauge, Torque Sensor Model STE200, Instructions,ac adapter and carrying cases. Unit fully functional.
* Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
* Unlimited number of sensors possible due to unique design
* Programmable default configuration for each sensor
* RS-232, Mitutoyo and analog outputs
* GCL - Gauge Control Language for full computer control
* Averaging mode for average readings over time
* External trigger for data capture and switch testing
* Programmable dual set points with outputs
* General purpose I/O for external device control
* Selectable units of measurement
* Accuracy: 0.1% of full scale 1 digit + sensor's accuracy
* Sampling rate: 65 readings/sec
* Environmental requirements: 40 F - 100 F [5 C - 45 C], <96% humidity (non-condensating)

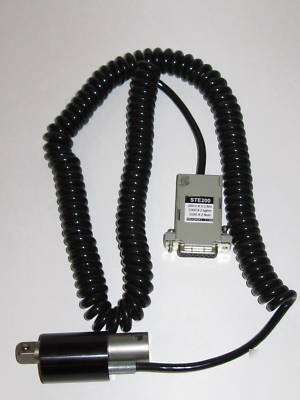

WRENCH EXTENSION TORQUE SENSOR Series STE Model STE200
(Useful for Torque wrench testing)
Sensor Features/Specifications
* Capacity: 200.0 x 0.2 lbin , 2300 x 2 kgmm , 2200 x 2 Ncm
* Member of the BGI family of interchangeable sensors
* "Personality module" holds all calibration and configuration data
* Stainless steel and aluminum construction
* Accuracy: 0.6% of full scale 1 digit
