Cole-parmer universal input panel meters part# 93284-00

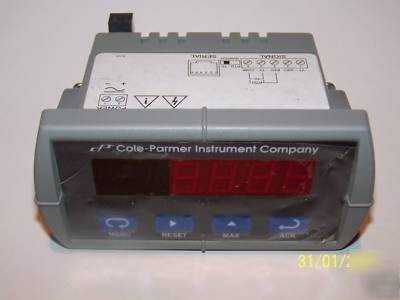

Cole-Parmer Universal Input Panel Meters
Meters accept current, voltage, thermocouple, and RTD inputs
* Front panel push buttons simplify programming and set up
* Bright, easy-to-read display
* Programs and min/max readings are stored in nonvolatile memory for 10 years or until reset.
* These panel meters are specifically designed for temperature and process applications. A user-definable security password protects programs and settings from accidental changes. Transfer meter settings from one meter to another with the copy function. Choose RS-232 or RS-422/485 for serial communication. Turn your panel meter into a datalogger and trend analyzer with the optional MeterView software.
Front panel meets NEMA 4X and IP65 standards for dust and water resistance. Rugged case features an extra large bezel for rough panel cutouts. Housing is 1/8 DIN to fit standard panel cutouts. All inputs are factory calibrated.
J, K, T, E, RTD, current, voltage
Process: 0.05% of calibrated span 1 count
0.56"H, four digit, high efficiency LED
328 to 1382 F ( 200 to 750 C)
32 to 149 F (0 to 65 C) with 0 to 90% RH non-condensing humidity
Type J: 58 to 1382 F ( 50 to 750 C)
Type K: 58 to 2300 F ( 50 to 1260 C)
Type T: 292 to 700 F ( 180 to 371 C)
Type E: 58 to 1578 F ( 50 to 870 C)
Process: up to three decimal places
Temperature: 1 F/C (0.1 F/C type T only)
3.7 to 5 seconds for process/RTDs and 1.8 to 2.5 seconds for thermocouples
1/8 DIN high impact plastic, NEMA 4X, IP65
