Balluff bes 516-356 E5-c-54
Rated operating distance Sn 4mm
Assured operating distance Sa 0...3.2mm
Ambient temperature range -25...+70 C
Time delay before availability <= 10ms

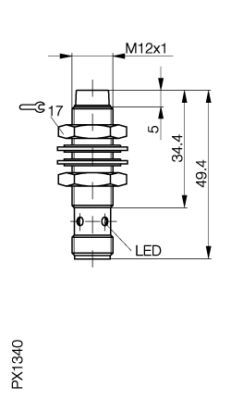

Measurements BxHxT or DxT M12x1 x 49.4mm
Housing material nickel plated brass
Degree of protection IP68 acc. BWN Pr 20IP
Schock: Halfsinus, 30 gn, 11ms
Vibration: 55 Hz, 1mm Amplitude, 3 x 30 Minutes
switching function normally-open
Rated opertional voltage 24 DCV
Rated opertional current 200mA
max. switching frequency 2000Hz
No-load supply current <= 10mA
Protected against polarity reversal yes
