14" x 9" y moore 1-1/2 jig borer, tooling pack, auto qu
14" X 9" Y Moore 1-1/2 JIG BORER, TOOLING PACK, AUTO QU

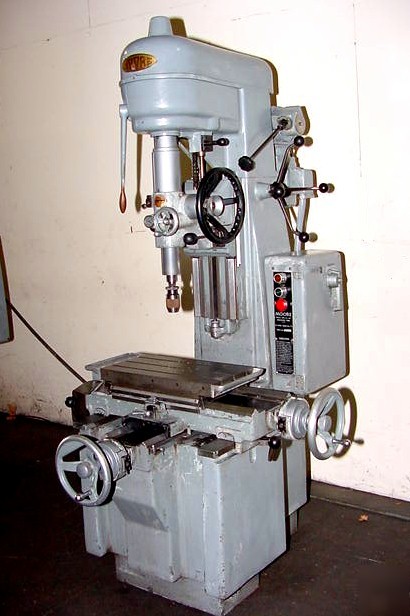

14" X Axis 9" Y Axis Moore 1-1/2 JIG BORER, TOOLING PACK, AUTO QUILL FEED
MODEL: #1-1/2B S/N: J388 NEW: 1965
TOOL STEEL .................................... 3"
SOFT STEEL .................................... 5"
SPINDLE SPEEDS ..................... 20 - 2400 RPM
SPINDLE FEED ........... 2 FEEDS 0.001" AND 0.003"
TABLE WORKING SURFACE .......... 10-1/2" X 19-1/2"
TABLE TRAVEL, LONG ........................... 14"
TABLE TRAVEL, CROSS ........................... 9"
TABLE TOP TO SPINDLE NOSE ............... 3" - 16"
TABLE TOP TO SPINDLE NOSE WITH RISER IN PLACE: 7" - 20"
VERTICAL ADJUSTMENT ........................... 9"
SPINDLE TRAVEL ............................ 3-7/8"
APPROX. DIMENSIONS ...................... 47" x 47" x 81"H
1 HP SPINDLE MOTOR, TWO-SPEED,
MACHINE IS WIRED FOR 3/60/220 VOLTS 5 AMP SERVICE)
TOOLING PACKAGE THAT COMES WITH THE MACHINE
Collet w/Moore Precision Boring Head
(1) Collet w/Jacobs Drill Chuck 3/8" (Key Type)
