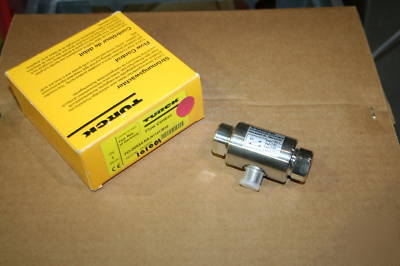

TURCK In-Line Flow Sensor with Separate Processor
Catalog Number: FCI-D09A4-NA-H1141/M16
Calorimetric Function Principle
Adjustment via potentiometer on processor
Status display via LED chain on processor
4-Wire connection to the processor
Model Number: FCI-D09A4-NA-H1141/M16
Operating Range Water: 30 to 900 ml/min
Oil Operating Range: 90 to 1800 ml/min
Temperature Change Reaction Time: 12 s (max.)
Temperature Gradient: <= 250 K/min
Medium Temperature: -20 to +80 C
Housing Material: Stainless Steel, V4A (1.4571)
Sensor Material: Stainless Steel, AISI 316Ti
Electrical Connection: Connectors, M12 x 1
Mechanical Connection: M16 x 1.5
