Liebert model 3600A, three phase power line monitor


With all of the natural disasters occurring around the world today, it seems like only a matter of time before the Electrical Grid is going to suffer somewhere. You may already live in areas of brownouts, poor voltage stabilization, or any number of electrical disturbances and anomalies.
All of this was predicted by Nikola Tesla the Father of AC Current, and a genius on par with the world s greatest scientist and inventors. Just like Leonardo da Vinci, some of Tesla s inventions are just now beginning to be understood.
In any case, this piece of equipment, the Liebert Model 3600A will keep you informed about all aspects of the power coming into your home or business. Not just a toy line reader, this is the most sophisticated instrument available to the public that can monitor the quality and anomalies of the voltage coming from the power grid. It is remarkably simple to use, but incredibly sophisticated in its capabilities.
Perfect for the engineer, or electrician that wants to see what is really going on with the power arriving at the building they are testing. It s no secret these days that you won t get a straight answer regarding a problem from virtually any Public Utility. This equipment will conclusively point out the issues, problems and discrepancies that are occurring so you can address them with senior engineers at the offending power company.
You ll look like a hero to your client when you provide them with a detailed analysis of their power issues, plus your reputation will be solidified with the power company as someone who really knows what they are talking about.
The equipment is extraordinarily sophisticated, simple to use, and portable allowing you to developed a thriving business pointing pout the foibles of our pathetically run power grid.
Below I ve listed the specifics that this unit is capable of:
Liebert Model 3600A, three phase Power Line Disturbance Monitor
Includes input for temperature and relative humidity probes (probes not included)

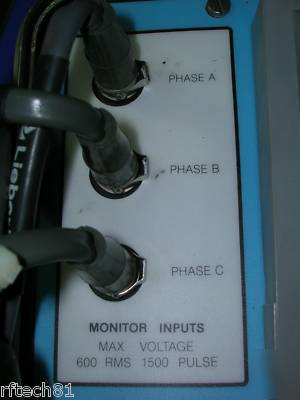

Included three cables for connection of three phase dual lead cables (six wire input), plus two power cords.

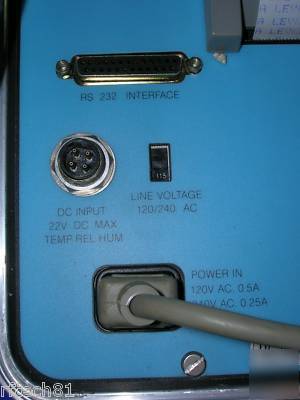

Built in thermal printer and RS-232 Port

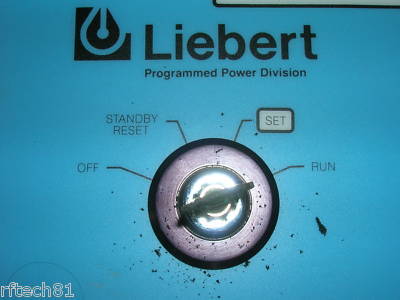

Complete with Built-in Carrying Case, and operations key to minimize tampering during long term monitoring projects.

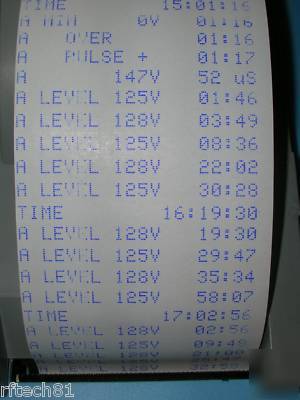

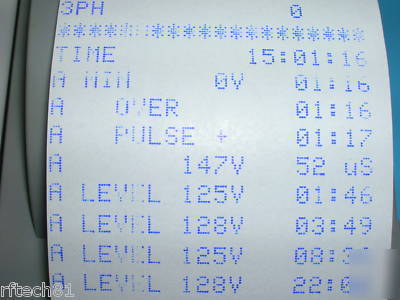

Passes self test, powered up, and monitors voltages on all three phases, and prints variations (see pictures)
Internal battery likely needs to be replaced at some point
Portable Programmable Power Line Disturbance Monitor
The Model 3600A Power Line Disturbance Monitor is designed to detect disturbances which exceed the sensitivity thresholds of sensitive electronic equipment. It will classify them as to type, magnitude and duration, and tell the user exactly when they occurred, so that they can be correlated with load equipment errors or malfunction.
Simultaneous monitoring of 3 AC phases and 1 DC channel
RS232 interface with selectable baud rate

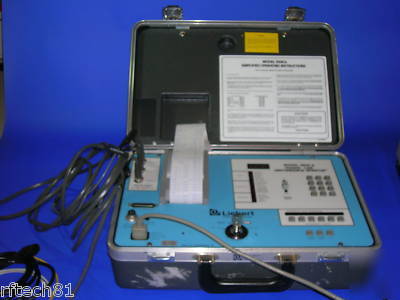

Packaged in a compact, rugged briefcase including a compartment for cables and operator's key in lid. Unique standby mode enables equipment portability without resetting threshold and clocks
AC rms Line Voltage 3-Phase AC rms Line Voltage Peak Pulse Voltage Frequency DC Voltage/DC Pulse
Input Range 50 to 800 V 50 to 800 V 50 to 1500 V 40 to 80 Hz (400 Hz optional) 1 to 22V 50 V maximum
Response Time 10 rms 10 rms 0.3 s to 1 ms 200 ms 1 s pulse 10 ms avg.
